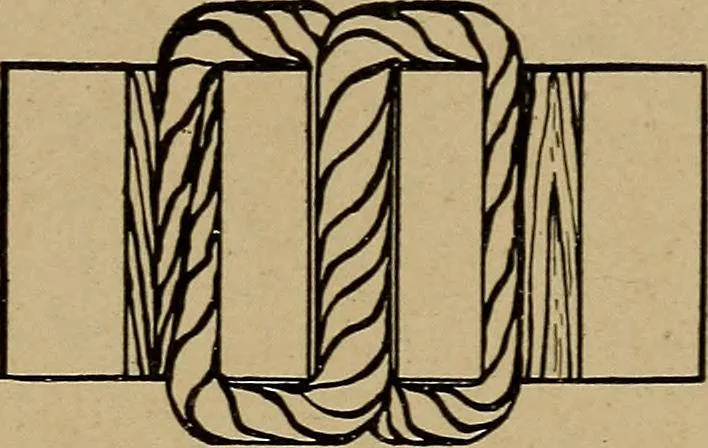

eather the same as the screen (Fig. 259),or they may be made of cord as shown in detail in Fig. 255. The cord is laced through one hole, then between theposts and through the second hole.This makes it double in the secondhole. Pins are glued and forcedinto the holes to keep the cord frommoving. No… … Fig. 255—Cord Hinge LESSON 54 SCREEN This screen (Fig. 256) is a fine lesson in jointing, squar-ing, boring and designing, but it should not be undertakenuntil you have made some of the more simple objects of thisclass. If you have had this experience, you require no additionaldirections except…
