Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 187

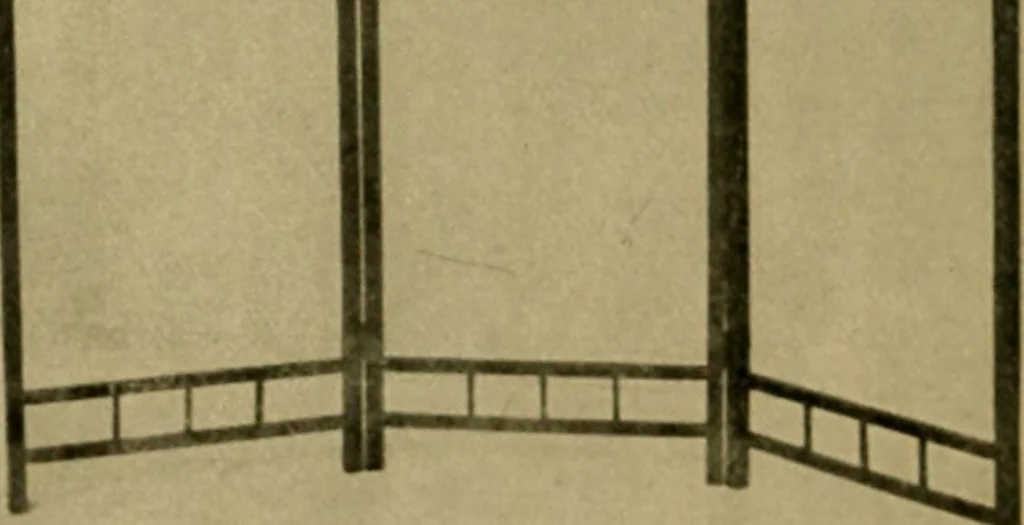

breaking through. You mustkeep ever in mind that the longer the parts the more anyvariation in the boring or whittling will show, and therefore bevery careful to bore all holes exactly straight, and whittle allends exactly alike. Study all the designs of this class and make a drawing 184 WOODWORK… … Fig. 256—. Qg (Fig. 257) gives the dimensions of Fig. 256. There are many ways of securing the tapestry, but for a light screen, the rods, as shown in Fig. 258, are probably WOODWORK FOR THE GRADES 185 best. These are simply light curtain-rods. The leather hingeshown in detail in Fig. 259 is a very…
