Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 190

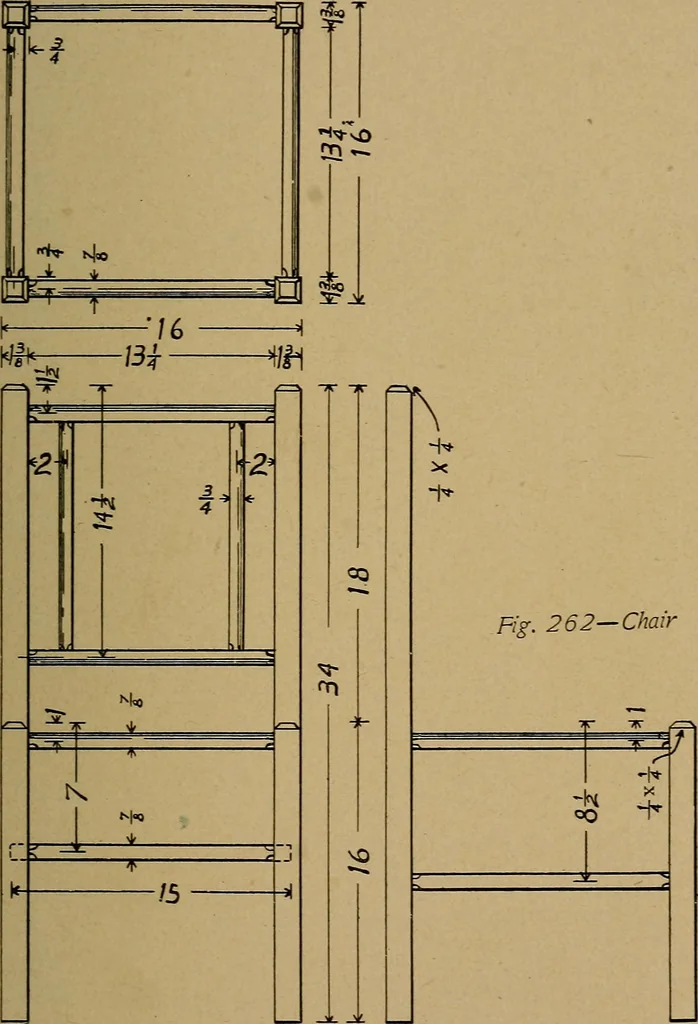

Fig. 260 Chan- Fig. 2- Sides More pieces may be used, or those shown may be differ-ently placed. The sizes given in the drawing (Fig. 262)are as shown in Fig. 260. The parts could be much heavier, but it will not be safeto make them lighter. By comparing the sizes given in the WOODWORK FOR THE… … 188 WOODWORK FOR THE GRADES drawing before beginning work. In putting the parts togetherassemble the sides first. To make both sides alike they maybe clamped as shown in Fig. 261. After the two sides arefinished insert the rungs and clamp them together. In all theassembling examine the pieces for…
