Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 224

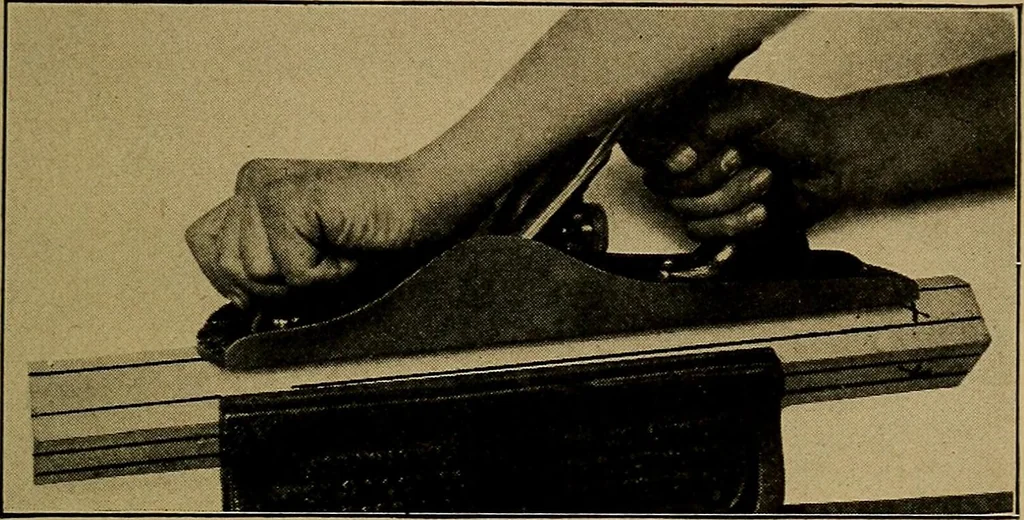

doing this,first, it makes easy the finding of any error in your work and,second, the fraction, Ho, is a little too large. A better spacing to use on larger pieces is seven twenty-fourths, but for small pieces a three-tenths division is better.Yet another method of making an octagon is shown in… … Fig. 306—Planing an Octagon lines so as to easily distinguish the original four sides after thecorners have been planed off. Test every side by measuring with the rule, holding it in Fig. 307—Planing an Octagon 222 WOODWORK FOR THE GRADES the same manner as in measuring the chamfer (Fig. 86).…
