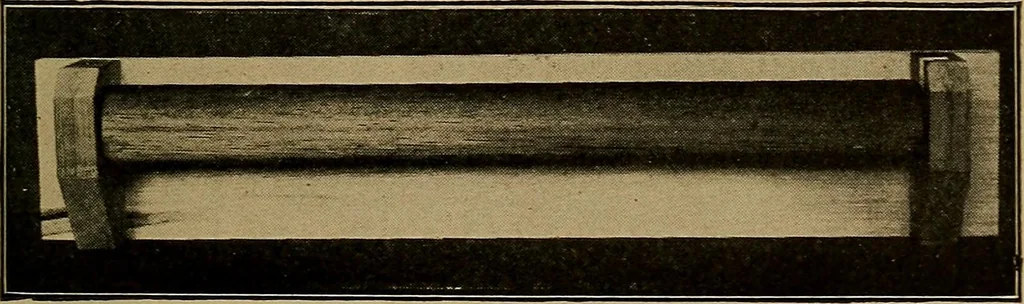

Fig. 309—Sawing End of Cylinder between two pieces as shown in Fig. 309 and draw lines onthe pieces to saw by. Saw very slowly to avoid slivering. LESSON 69 TOWEL ROLLER Fig. 310 illustrates the towel roller and Fig. 311 is a mechani-cal drawing of it. The size and shape may be modified to suit. … Fig. 310— Towel Roller 224 WOODWORK FOR THE GRADES The back or main part requires the same working as thebench-hook. h ■ / 7 w
