Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 36

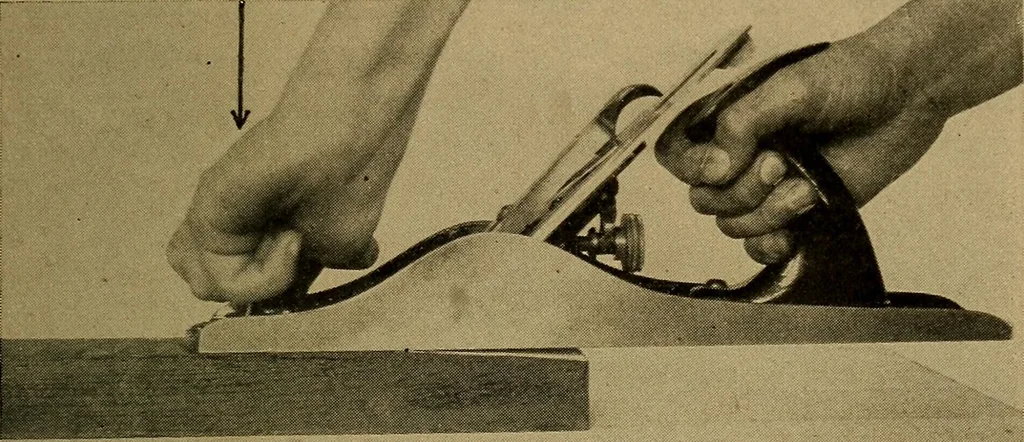

theplane moving forward as it is lowered to the surface and grad-ually raise it before it ceases to move forward in finishing thestroke. If this is done, there will be no marking of the surfacewhere the shaving cut begins or ends. In all of this planing be careful to move the plane so slowlythat… … Fig. 32—Starting Plane
Woodwork
