Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 76

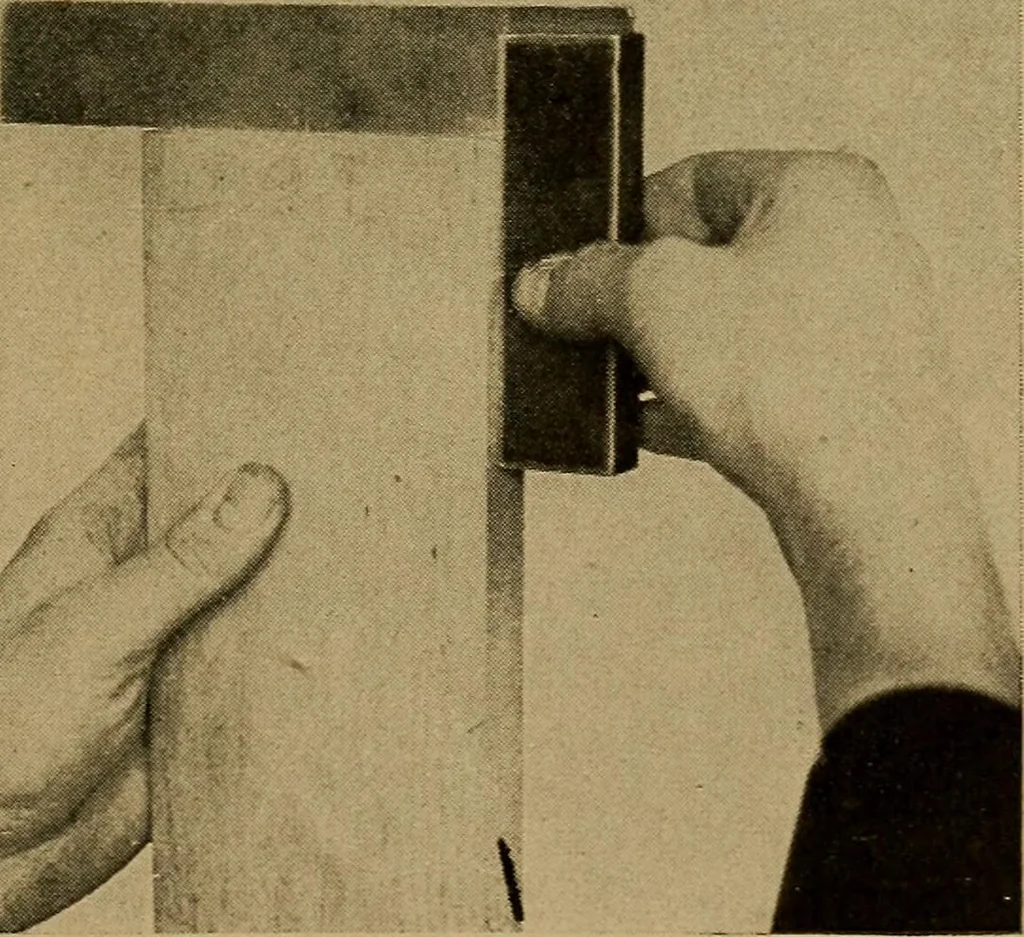

Fig. 80—Try-square on Side and End around the endand try again.Although to havethe board shorterthan the drawingcalls for is a seri-ous mistake andshould not occur,yet it is far worseto leave the endwithout making itsquare and smooth. given in the draw-ing and draw a linearound the otherend of the… … Fig. 81 — Try-square on Edge and End 74 WOODWORK FOR THE GRADES LESSON 17 MAKING THE SIDES. After finishing the wide piece for the bottom of the bench-hook, take the piece which is 12 J inches long and 4 incheswide, dress it square and finish the ends. Proceed exactly asdirected in making the first…
Woodwork
