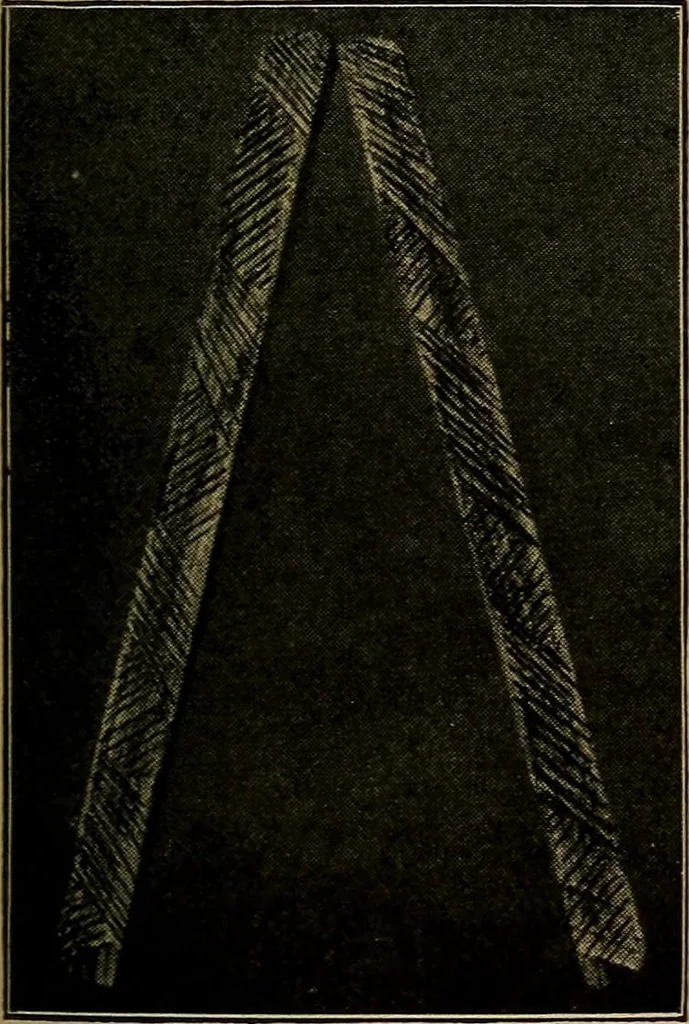

done properly the edges will appear as shown in Fig. 94. This shows the mark-ings made by the teeth of the sawat the different angles as thepiece was reversed. The edges should now becarefully jointed. Often it isbest to remove the face-marksand place one on the side oppo-site the chamfer after… … ■1 WOODWORK FOR THE GRADES LESSON 21 NAILING. The common adzeye hammer, (Fig. 95) is the onlyhammer required for your first work. The handle is hickoryand the head steel. Both the face and the claws are tempered. The face, whichstrik es thenails, is tem-pered muchharder than theclaws. If theclaws…
