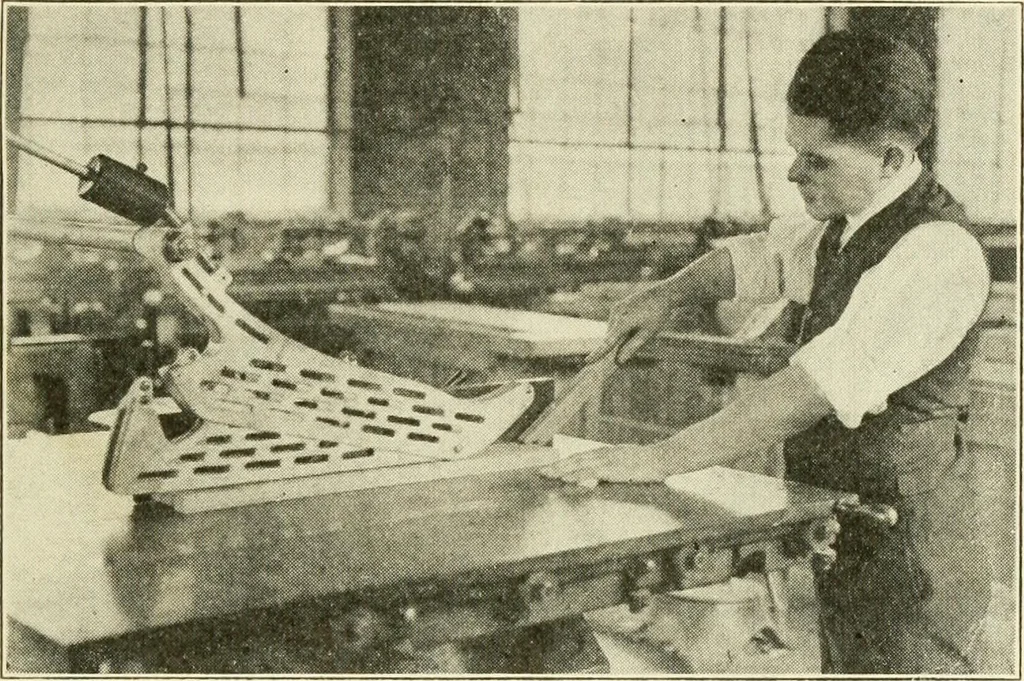

ODWORKING MACHINES. 97 fence may be used on either side of the saw. By meansof the quick adjustment a variation of about 12 ispossible. Where greater width than this is wanted it canbe got by moving the locating pins of the fence to asecond set of holes in the table. The fence may bemoved backward… … Fig. 160. Ripping Narrow Stock. rip-saw above the table to a height but slightly greaterthan the thickness of the stock to be ripped. Notice thetilting index to see that it is as it should be. The machineis now ready for the power. A circular saw, being a very dangerous machine, willrequire the…
