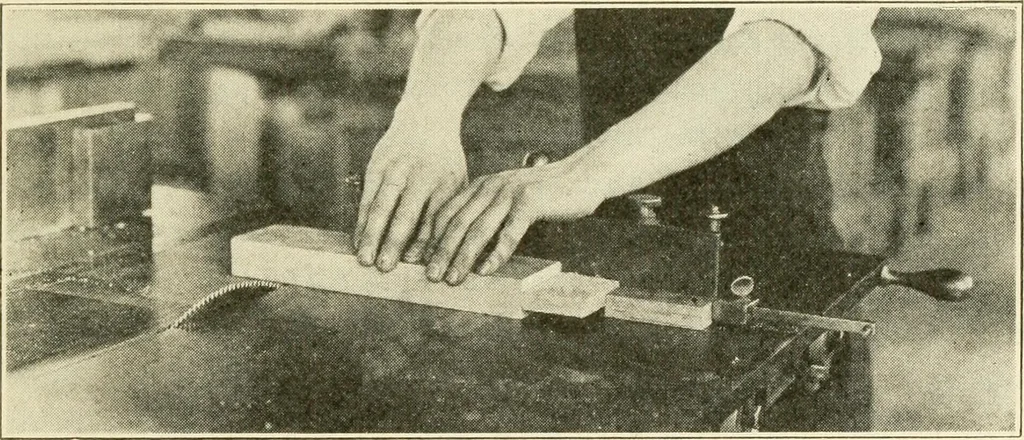

Fig. 166.Using the Clearance Block—First Step in Sawing Tenons. tenon required, considering the location of the saw kerf.(5) Raise the crosscut-saw the amount required to cutthe depth of shoulder for the tenon. Clamp the shaft of … Fig. 167. Sawing Tenon—Second End. the hand-wheel just used in raising the saw so that itshall not move. (6) Run thru all members taking this 102 WOODWORK FOR SECONDARY SCHOOLS. depth of cut. (7) If necessary, reset the saw for theshoulder cuts or kerfs on the edges of the stock. (8) The next step…
