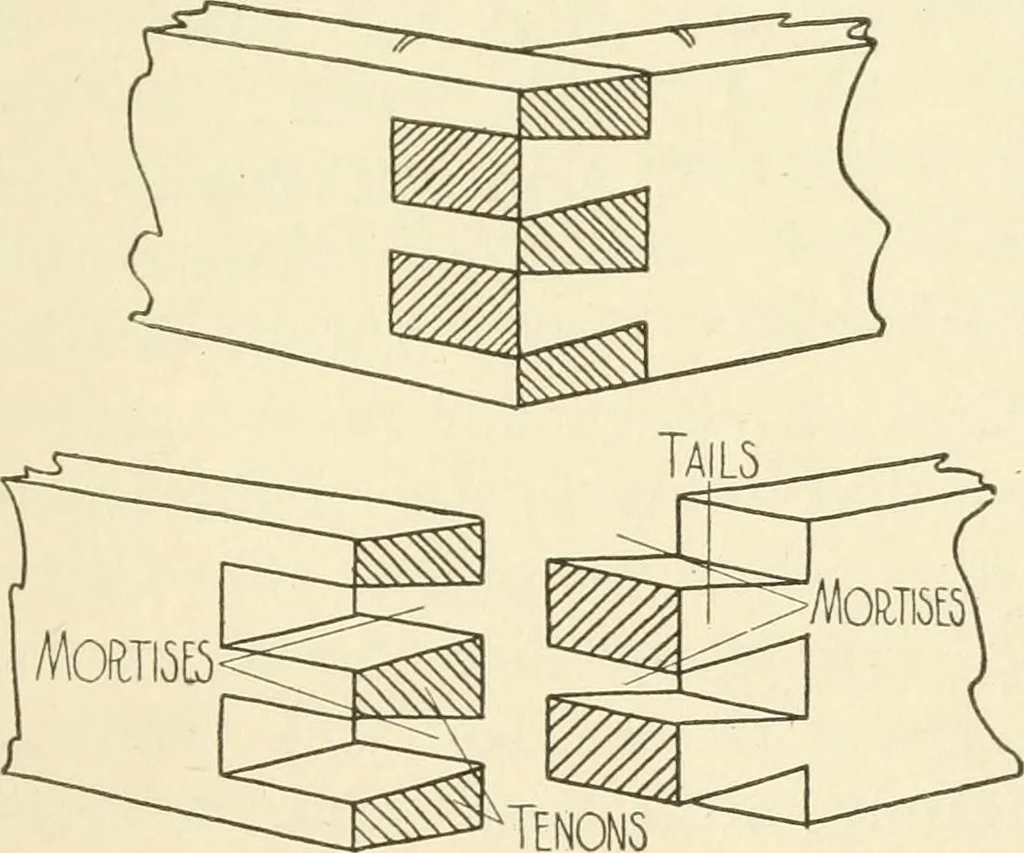

tenons without measure-ment, depending upon the eye unaided to give the propersize and shape. Sometimes dovetails are laid out toexact shape and size, the tenons being marked on both sides and ends. Themortises are markedwith try-square andbevel after one sideof each has beenmarked by… … 172 WOODWORK FOR SECONDARY SCHOOLS. 163. Directions for Dovetail Joint.—(1) Squarelines around each end to locate the inner ends of themortises and tenons. These lines will be at a distancefrom the ends equal to the respective thicknesses of thepieces. (2) Determine the number of tenons wantedand…
