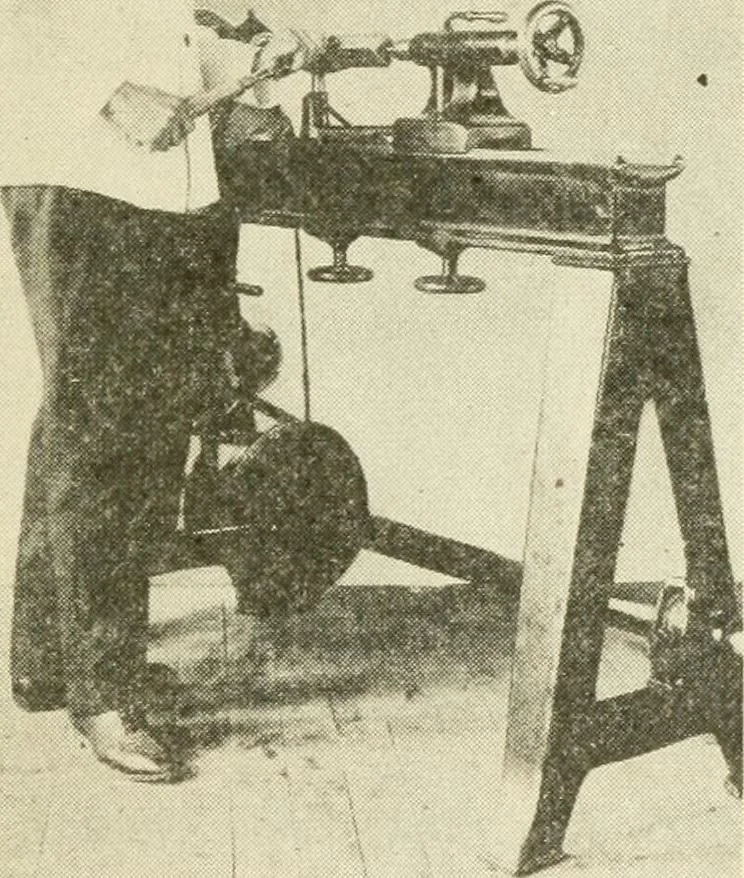

the dead spindleslightly and try the beltagain. It may be necessaryto unscrew the spindleslightly again before thewood will revolve freely.(8) Adjust the spindleclamp carefully. 171. Adjusting the ToolRest.—B efore power isturned on, the tool rest mustbe clamped in a safe position.Fig. 287. A lathe… … Fig. 288.Posture at the Lathe. 188 WOODWORK FOR SECONDARY SCHOOLS. Adjust the rest so that its top is slightly above centers,about y to Y\ keeping it parallel to the stock to beturned, and al)out Y away from the farthest projectingarris on the stock. The height of rest is governed by theheight of…
