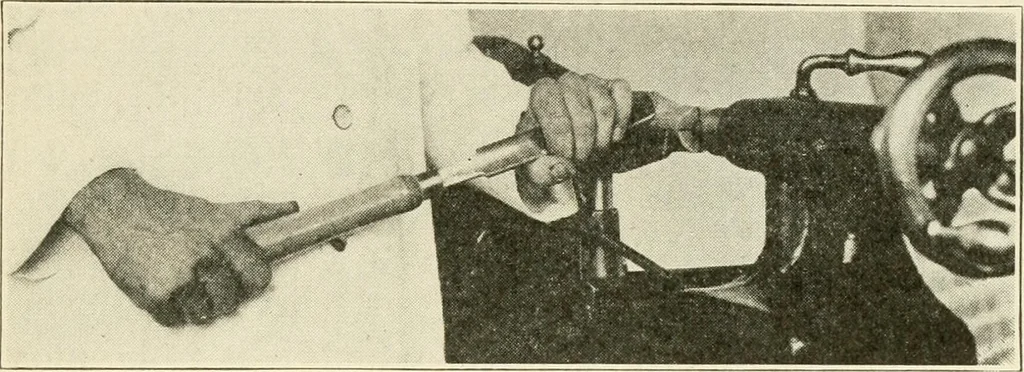

Fig. 289. Position of Hands on Gouge—First Position. 173. Use of the Large Gouge.—The large turninggouge is used for making the first or roughing-off cuts.It is also used to reduce the cylinder to its approximatediameter. The lathe should be run on low speed untilthe arrises are removed and the… … Fig. 290. Position of Hands on Gouge—Second Position. left hand against the rest, and grasping the blade, as inFig. 289, with the wrist dropped to allow the hand to actas a sliding guide alongthe rest, the fingers en-circling the tool; pushthe tool slowly towardthe revolving stock.Begin the cut…
