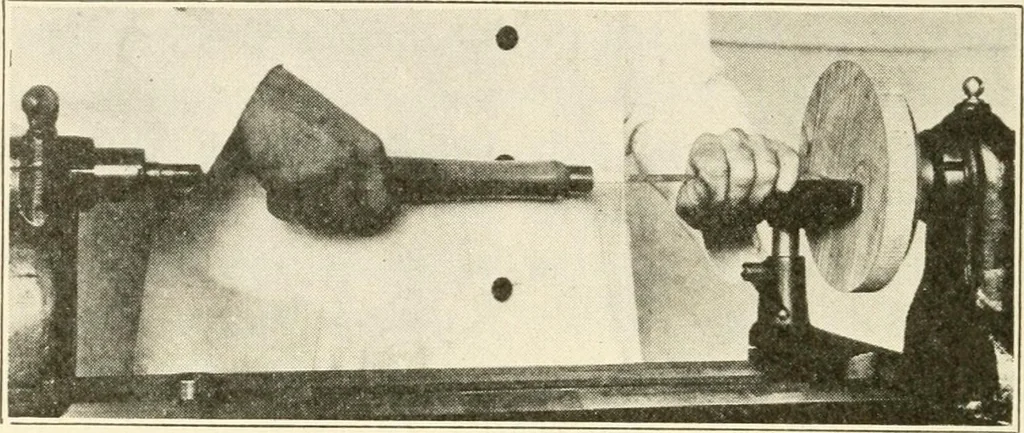

the l^ackingonly, the project being glued to the backing after thebacking has been faced off. The manner of fastening thethird type is clearly indicated in the drawing. For accurate face-plate turning there should be noend play in the live spindle. All good lathes are madewith adjustable bearings… … Fig. 319. Face-Plate Work. 187. Rough Scraping.—(1) With the stock to beturned upon the face-plate and in the lathe, the tail stockwell out of the way, move the tool rest to within -J of,and as nearly parallel to, the surface to be turned aspossible, Fig. 319. The tool rest should be raised to…
