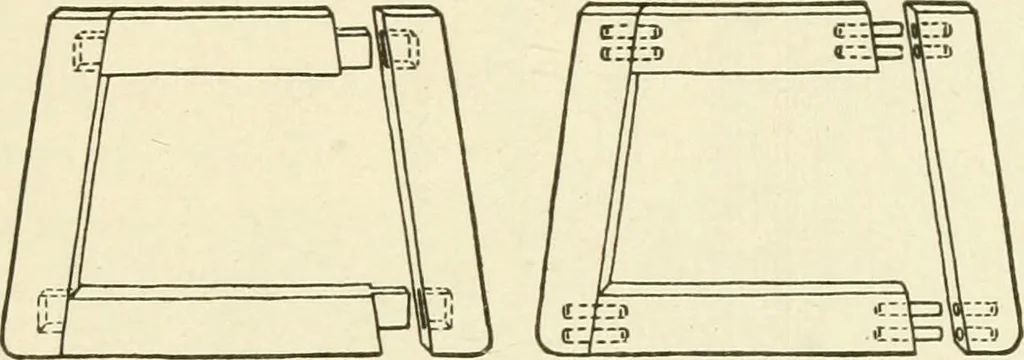

Ftg. 397. Placing Seat Slats. When a seat made of woven fiber or leather requiresa frame other than the seat rails, the frame is constructedas shown in Fig. 398. It may rest either upon the corner … Ftg. 398. Chair Seat Frame. braces, appropriately placed, or upon rabbeted rails.Sometimes dowels are inserted in the rails and the seatallowed to rest upon their extending ends. 229. Chairs.—Chairs, except the square seat type ofFig. 399, are rather difficult of construction for beginners.A casual…
