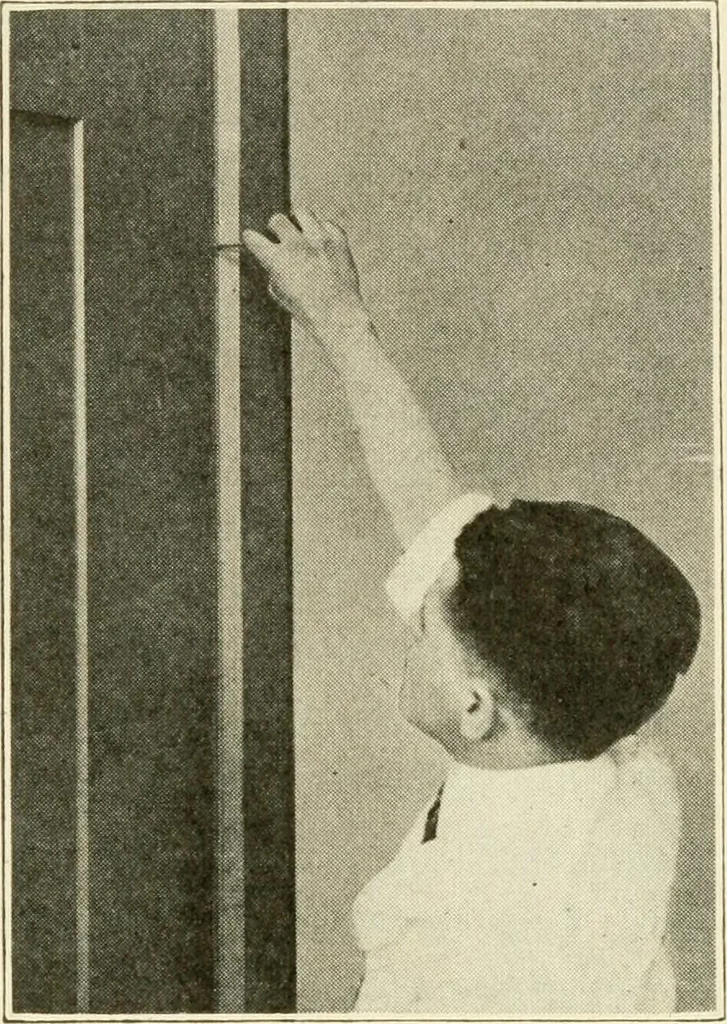

e certain that theopenings on door and onframe are laid ofif so as tocorrespond before pro-ceeding further. (6) Setthe gage for the depth thehinge is to be sunk andgage both door and frame,Fig. 450. (7) Set anothergage for width of open-ings and gage both doorand frame, keeping thehead of the gage… … FiG. 448. Marking Door andFrame for Hinge Location.
