Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 304

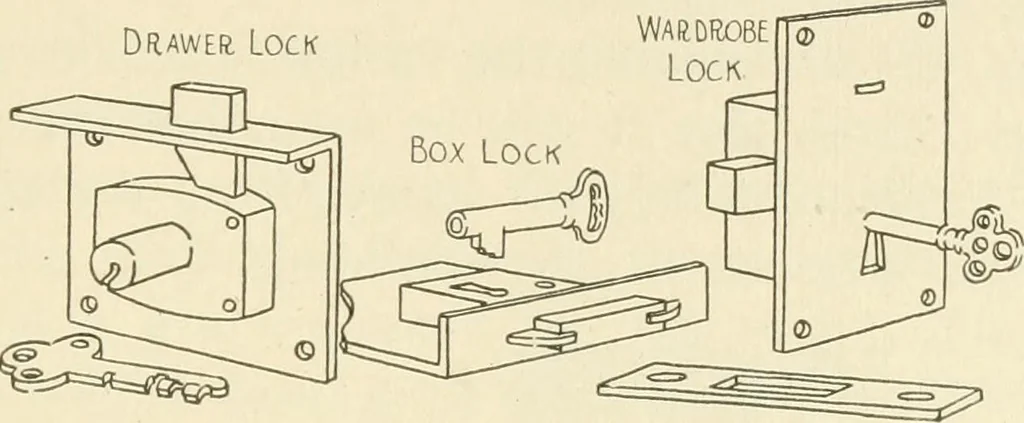

Fig. 452. Chiseling Out Gain. FURNITURE CONSTRUCTION 299 as are used on drawers and small boxes are shown in Fig. 453. The manner of applying a cabinet lock will be sug-gested by the lock itself. On surface locks, (1) the lock Drawer, Lock … Fig. 453. Three Kinds of Locks. is held against the inside of the door or drawer and theposition of the keyhole is marked. (2) This hole isbored. (3) The lock is screwed in place, and (4) theescutcheon fastened to the outer or front surface. If aface-plate is used, the door is closed, the position…
Woodwork (Manual training)
