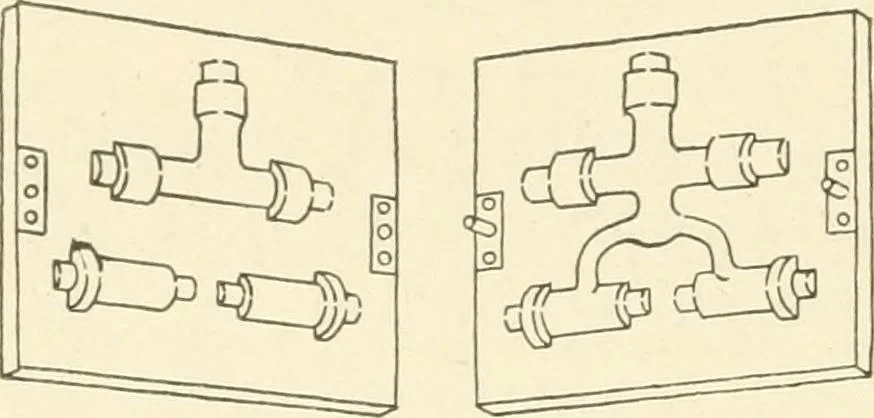

An illustration from Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools, 1916, leaf 333 — sand wdiile thepattern is being drawn. Such machines are used onlywhen large numbers of castings are wan.ted requiring ac-curacy, Fig. 516. 273. Double Shrinkage.—Machines, such as that justmentioned, have metal patterns.Metal patterns are also com-monly used without machineswhere permanency is… … Fig. 517. Match Plate.
