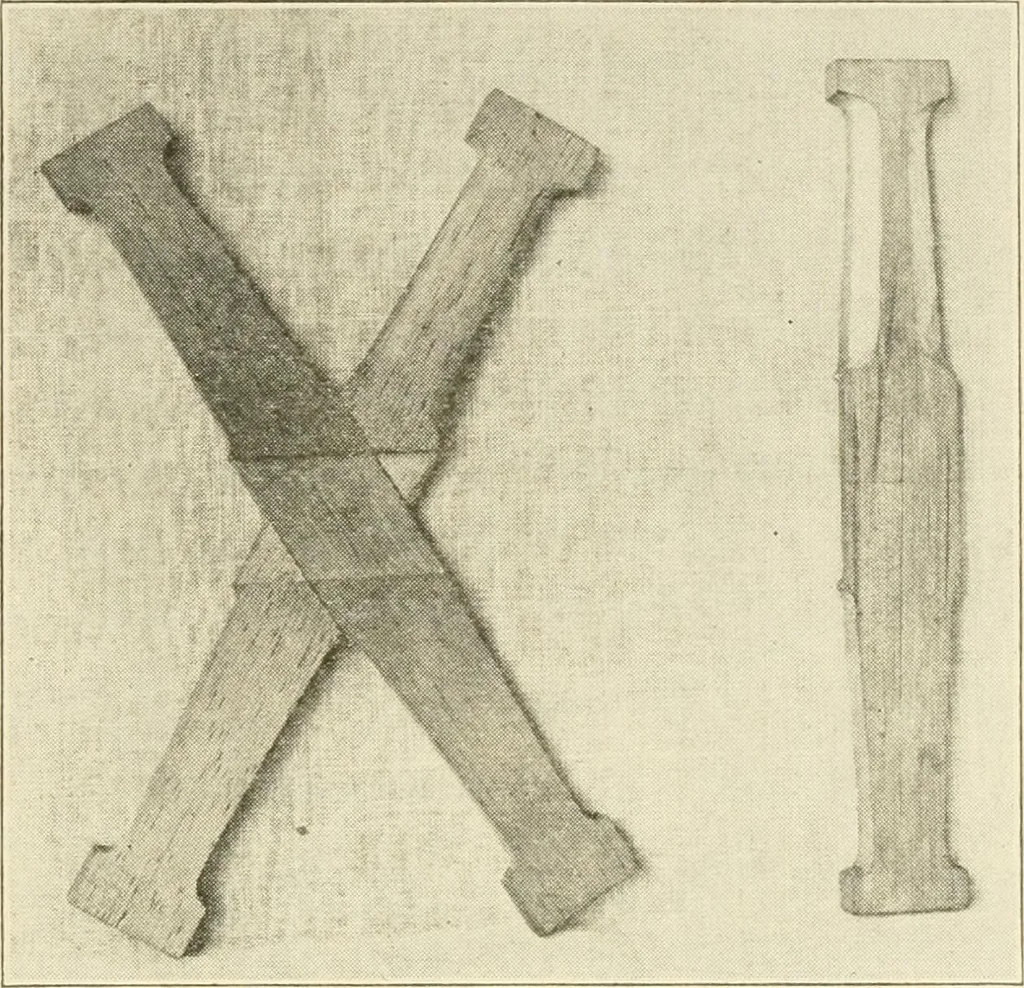

fthe templet as shown, consulting the machine drawing. The distance between the points of intersection of the30° lines with the arcs between the arms determines thewidth of each member of the joint, w of JMg. 555. 288. Forming Arms.^After tlie joint has \)vvn httedproperly, neither loose nor tight,… … Fig. 554. Joint of Six-Arm Pattern Partly Assembled. out upon the band-saw and smooth the edges whereneeded.
