Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 46

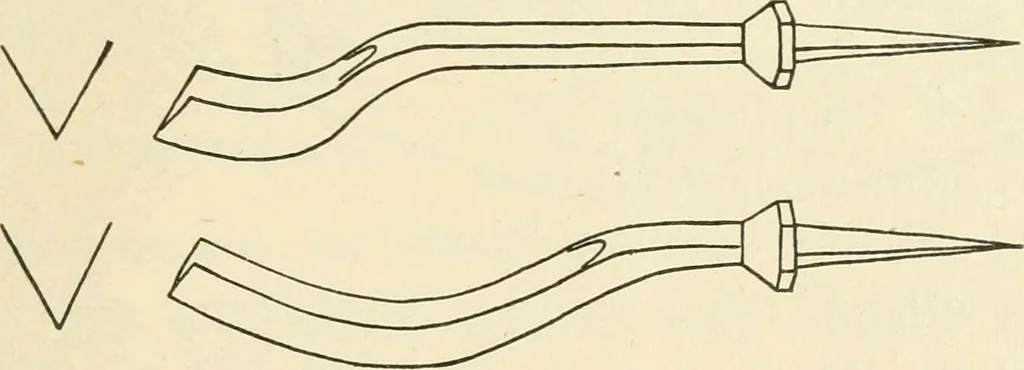

Fig. 54. Straight Gouge. Fig. 55. Short BentGouge. Fig. 56. Back ShortBent Gouge. Bent Gouge. Fig. 58. Front, ShortBent Chisel. <^^— -Ri 59. ght CornerChisel. Fig. 60. Left CornerChisel. Fig. 61.Carving orFirmer. Chisel. Fig. 62. Skew Carvingor CorrerI-irmer Chisel. … Fig. 63. Parting Tools—Straight, ShortBent, LongBent. 42 WOODWORK FOR SECONDARY SCHOOLS. 47. Carving Tools.—Wood-carving tools vary in shapeand size according to the particular use to which they areto be put. Among the most common forms are thestraight gouge, Fig. 54; front, short bent gouge. Fig.…
Woodwork (Manual training)
