Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 53

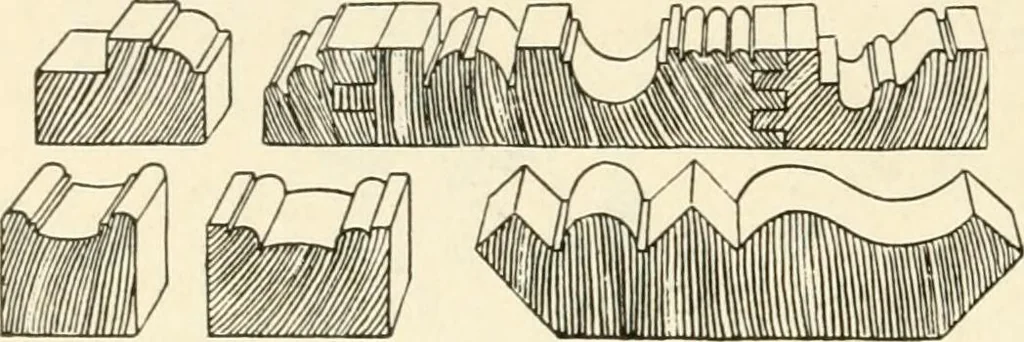

Fig. 74.Angles for SettingFence, Universal Plane 48 WOODWORK FOR SECONDARY SCHOOLS. to 45°. Fence E can be reversed for center beadingwide boards. In working at a distance from the edge of a board, thetendency of the fence to sag is overcome by attachingthe cam rest shown beside the plane in Fig.… … Fig. 75.Word Done by Universal Plane. fence, when usingvarious cutters, in order that the cutter shall not run.This is of great importance. Fig. 75 shows some of the forms which may beworked with this plane. 55. Router Plane.—A very convenient tool forsmoothing the bottonis of dadoes and enclosed…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
