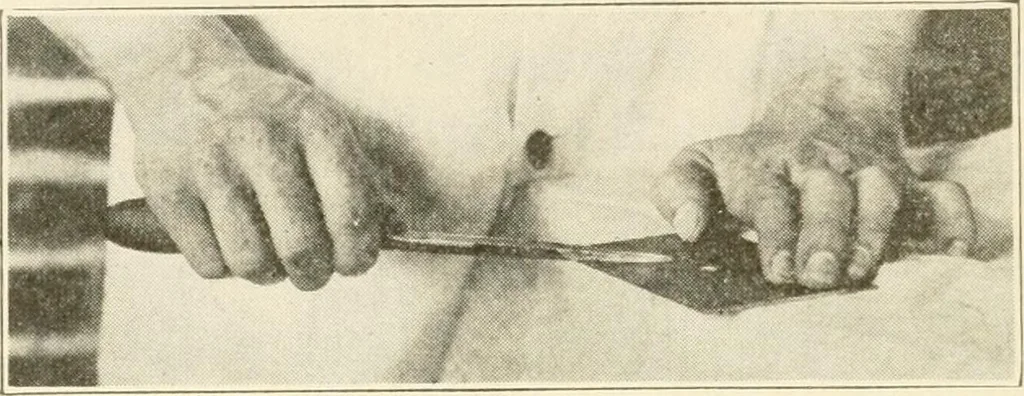

Fig. 121. Raising Burr on Scraper. 84. Sharpening Lathe Tools.—The first tool used inturning is the large gouge, called the roughing-out tool.This tool should be ground by holding it as in Fig. 123and moving the handle in the arc indicated thereon. Give 72 WOODWORK FOR SECONDARY SCHOOLS. the tool… … Fig. 122. Drawing Out Burr on Scraper. f ^ I -.«#««* J 1 m ■ ^H # m ^ 1 I 2 jg B ■■p \_^3BH m ^ ^ ^ n IH ■™B^|p:k MPi Hr J hI / ^^ i^^^^^M i^^^mM 1 it 1 L »t^ m Fig. 123. Grinding a Turners Gouge. Holding Ijoth gouge and whet-stone free, whet the bevel until aslight cdgG is turned; then, fittingthe…
