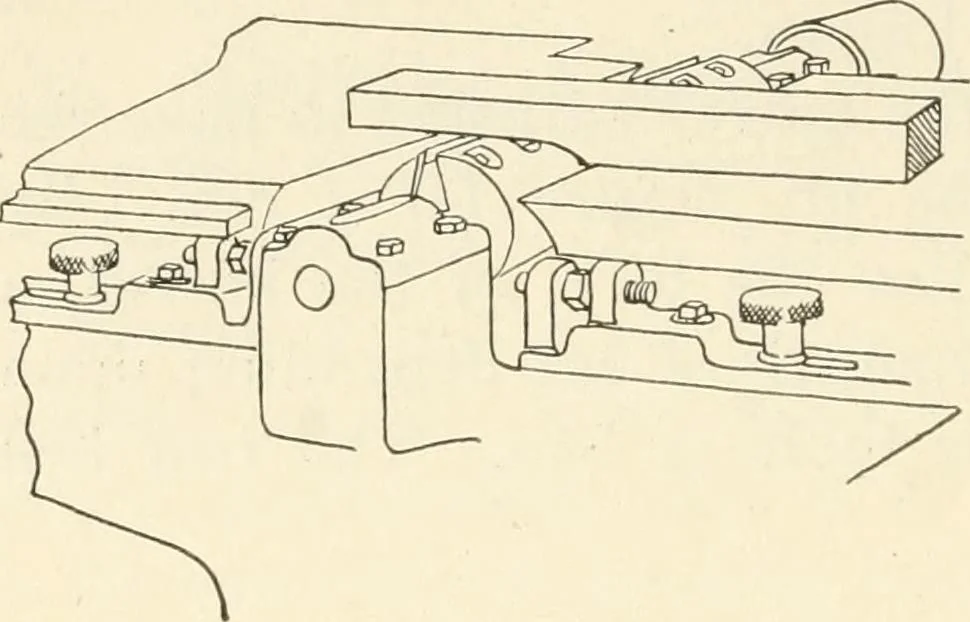

-of width in stock can be maintained only 1)y taking a uni-form cut the full length of the stock. Suppose the rear bed were too low. As the freshlycut surface ])assed over the rear table, light would showbetween it and the table. This would mean lliat the … Tmg. 137. Effect of High Rear Tarle on Jointer. Fig. 138. Effect of Low Rear Table on Jointer. stock was resting upon the front table only. As thestock passed forward it w^ould reach a place where itsfore end would dro]) until it rested on the rear ta1)le,producing- a crook in the edge. As the rear…
