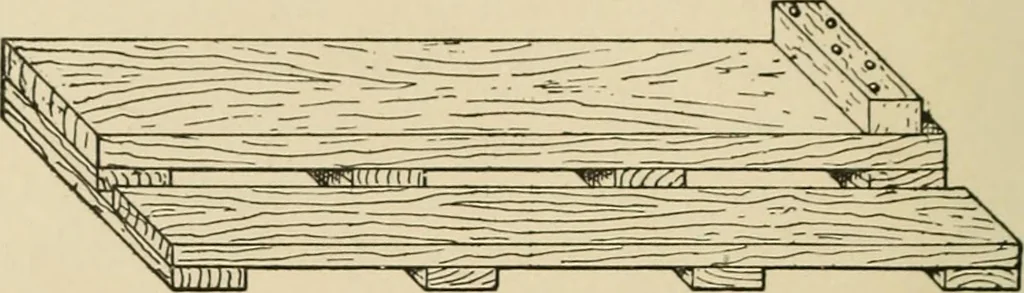

up any other references. Tlieconstruction is plain (Fig. 122). Approximate dimensions aregiven. Fig. 122 being made of ^^ stock. Fig. 123 of V and \stock, and Fig. 124 of ^ stock. Screw the pieces together from 94 Wood-Working for Beginners the under side (see Scre^us). See tliat the stop or cleat… … Fig. 124. do your work well. This board must have a rabbet or groovecut out of the upper piece, as shown, to give room for shavings.In Fig. 123 the top board overlaps the ends of the cleats a trifle,which (with the spaces between the cleats) allows the escape ofthe shavings. Arrange some way to…
