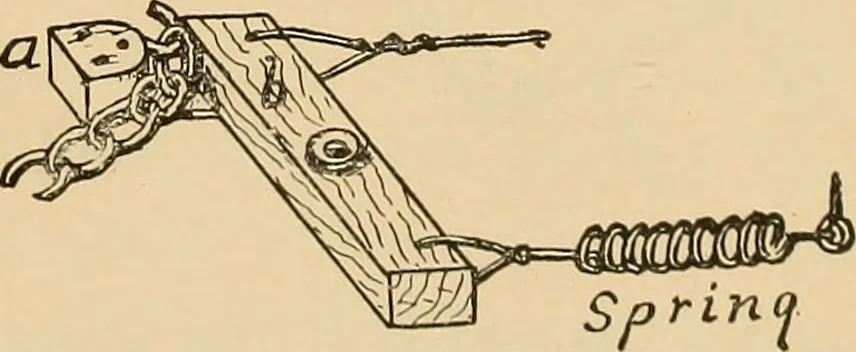

drawing, they are shown byfull lines, as they would look if the seat-board were transparent.A way of holding up the middle of the chain is shown in Fig.255. A small block <2, perhaps3 long, is screwed to the underside of the seat and the chain isheld against it by the pivoted barb (which is… … Fig. 255. 162 Wood-Working for P)eginners is connected by a wire with tlie lever in front. Wlien the lever ispushed by the steersmans foot the bar b is pulled away fromthe block a and the chain falls by its own weight under therunners of the rear sled, which quickly brings the double-runner to a…
