Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 108

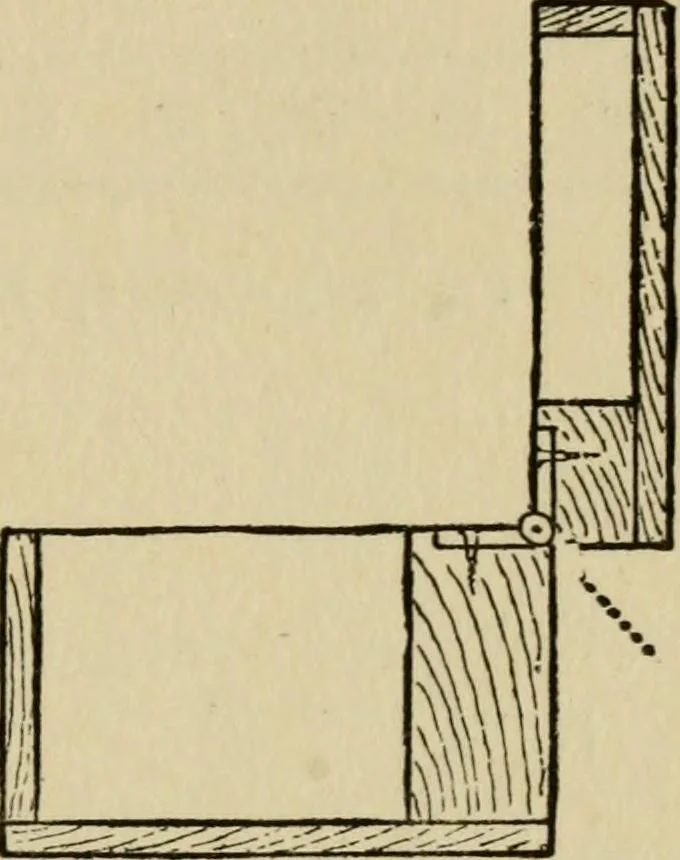

nd thegauge lines. In this sketch three saw kerfs are shown, 96 The Hinged Joint but if the hinge is of great length, say 5 or 6 ins., theremoval of the waste wood will be greatly facilitated bythe addition of intermediate saw kerfs. These cuts severthe cross fibres and allow the timber to be… … The Hingeing of a Box Lid. Fig. 232. or shoulder and prevents overcutting when taking awaythe bulk of the material. Fig. 229 shows the chisel clearingout the bottom of the recess, leaving it clean, smooth,and quite level. At Fig. 230 the recess is shown completedand ready for the hinge to be…
Woodwork · Carpentry
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
