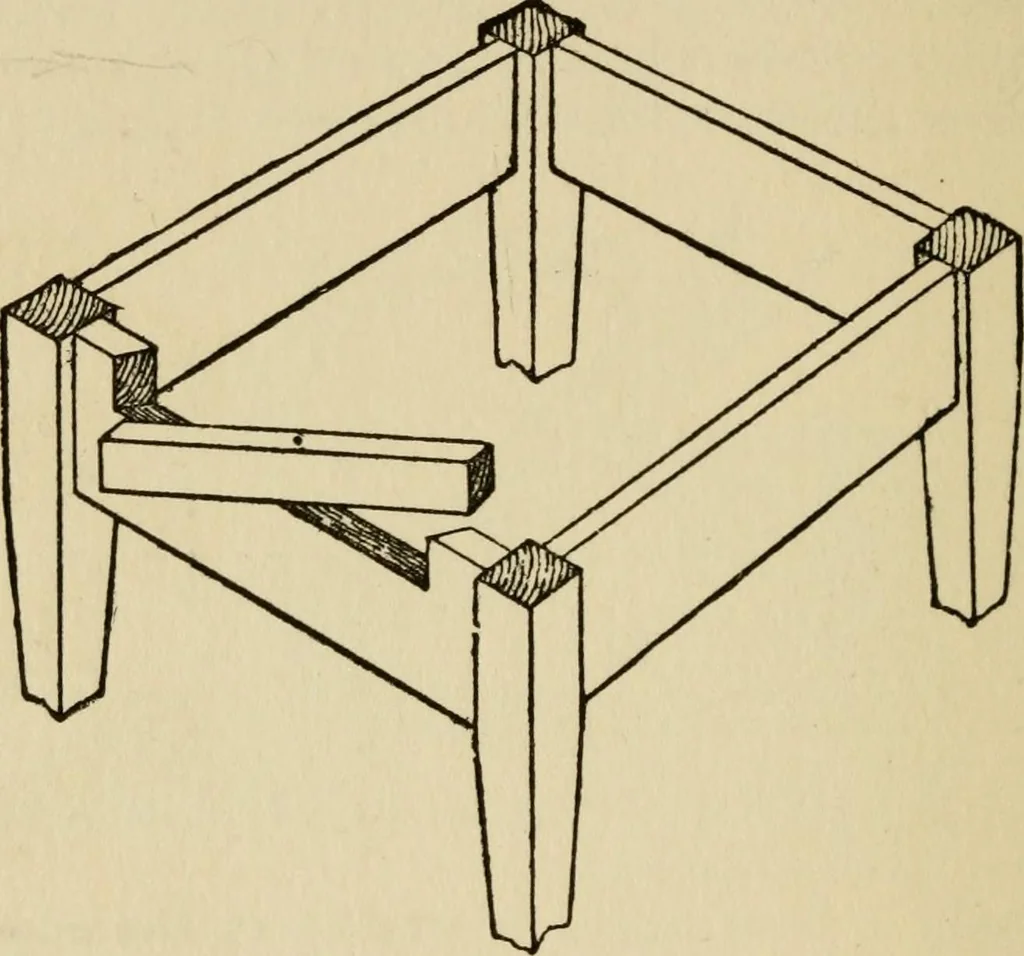

pivot hinges andarranged so that the edges form a stop when the deskfront is turned to a horizontal position. The position forthe fitting of the brass plates carrjring the pivot-pin issomewhat awkward ; but, by first sinking the plates into 103 Jomts in Woodwork the carcase ends, and then slotting… … Fig. 247.—Revolving Fly Rail for Table. REVOLVING FLY RAIL. Fig. 247 is a sketch of a small table with the top removed.A revolving fly rail is shown pivoted upon a piece of J-in.wire. The object of this fly rail is to form a support tothe small hinged drop-leaf of the table. This method issuitable…
