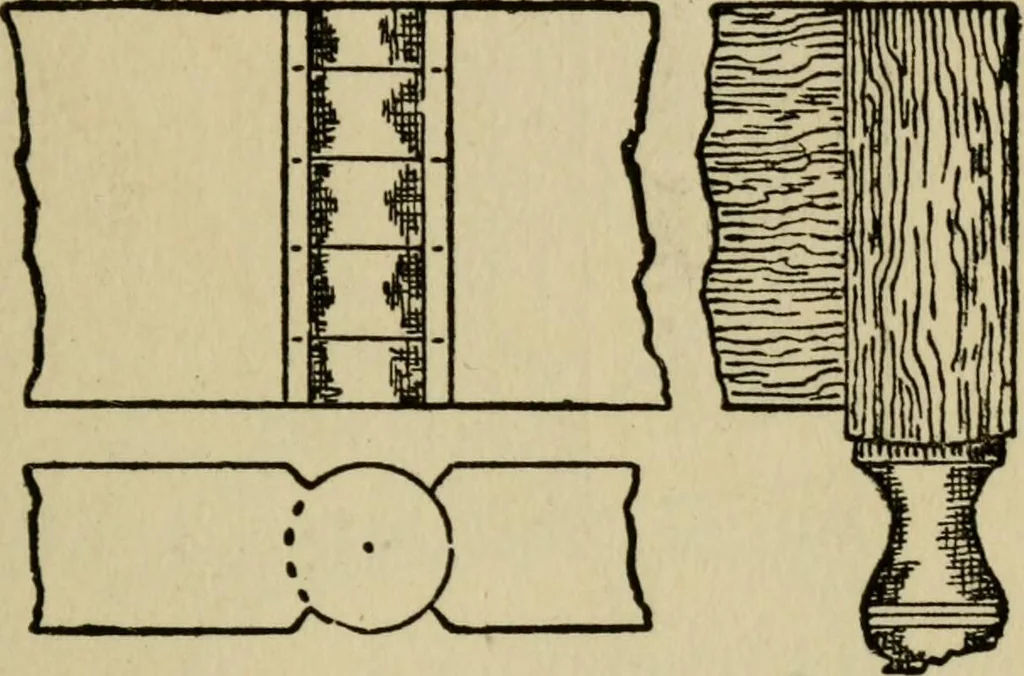

ble rail and the shaped bracket 106 The Hinged Joint swings out to support the drop leaf. The shaded portionof the bracket shows the timber chamfered away so thatthe fingers may be easily put behind the bracket to manipu-late it. Note that the corners are slightly rounded off, asindicated by the… … Fig. 251.—The Knuckle Joint Hinge. exactly the same pattern sold at about ^i. per pair. Thejoint, however, is still used for repair work and in caseswhere a stamped metal bracket has not sufficient overhang. KNUCKLE JOINT. Fig. 251 is a similar type of joint to the above, and iscalled the knuckle…
