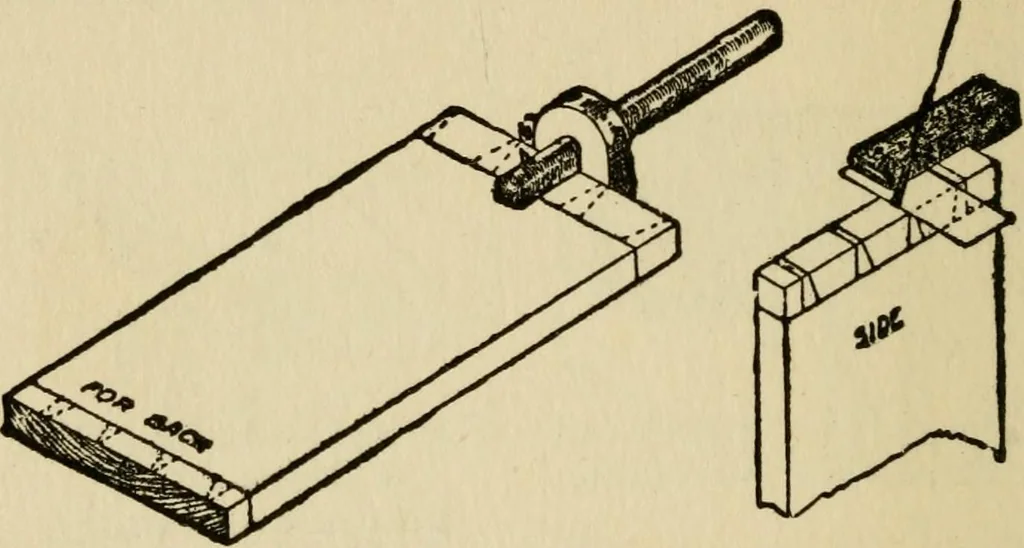

accurategauging of the ends is another important point. The 9 Joints in Woodwork gauge used should be a cutting gauge, so that the line isincised about -^ in. in depth, thus effectually cuttingthe cross fibres of the timber. Fig. 277 shows the method of using the cutting gauge.The stock of the… … Fig. 277.—Method of Markingwith Cutting Gauge. Fig. 278.—SquaringLines across End. thumbscrew shown in the illustration goes nearer to thefloor; the blade will then not bite so keenly, and betterresults will be obtained. The dotted lines indicate thepositions which the dovetails will occupy when…
