Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 135

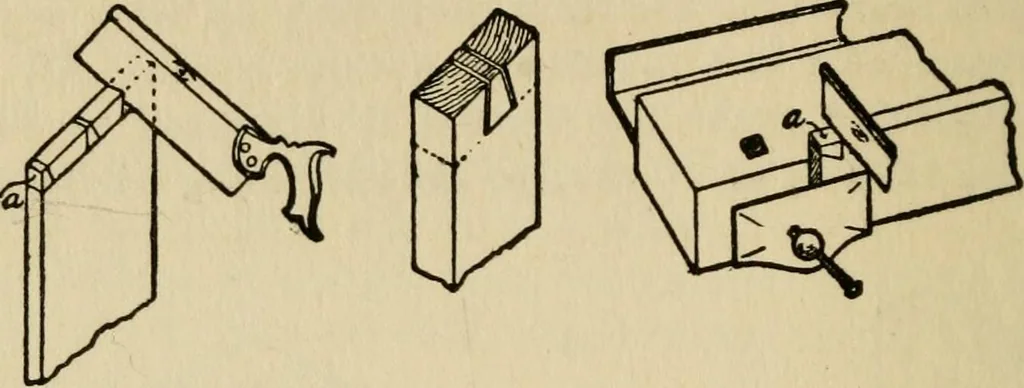

the waste material. Thedrawer side is taken and firmly secured in the bench screwand sawn as at Fig. 285 ; it is most important that thesaw kerf is kept inside the line which has been scratchedby the marking awl. See Fig. 286, where the dotted linerepresents the gauge line and the thick outside… … Fig. 285. Sawing Drawer Side. Fig. 286. Showing Gauge Lines and Scores. Fig. 287.HoldingDrawer Sidein Vice. thin-bladed dovetail saw. The writer has found an 8-in.dovetail saw to be the most convenient for drawer work.We now come to the point where it is necessary to cut
