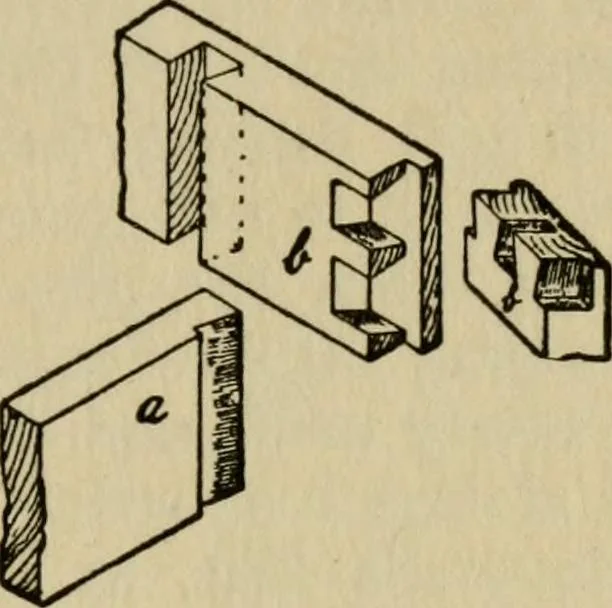

cessary labour and the use of the paring 124 The Dovetail Joint chisel. Fig. 287 illustrates the method of holding thedrawer side in the bench vice whilst the operation iscompleted. After sawing, the drawer side is placed flat upon thebench, one end in contact with the bench to prevent thedrawer… … Fig. 290.—Cutting severalDovetails at once. Fig. 291.—Frame Joint,showing parts separated. this channel is shown in the same illustration. Thechisel-cut is started about J in. from the gauge line; thecut is made right up to the gauge Une, which (when gauging)was made -^ in. deep so as to cut the…
