Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 140

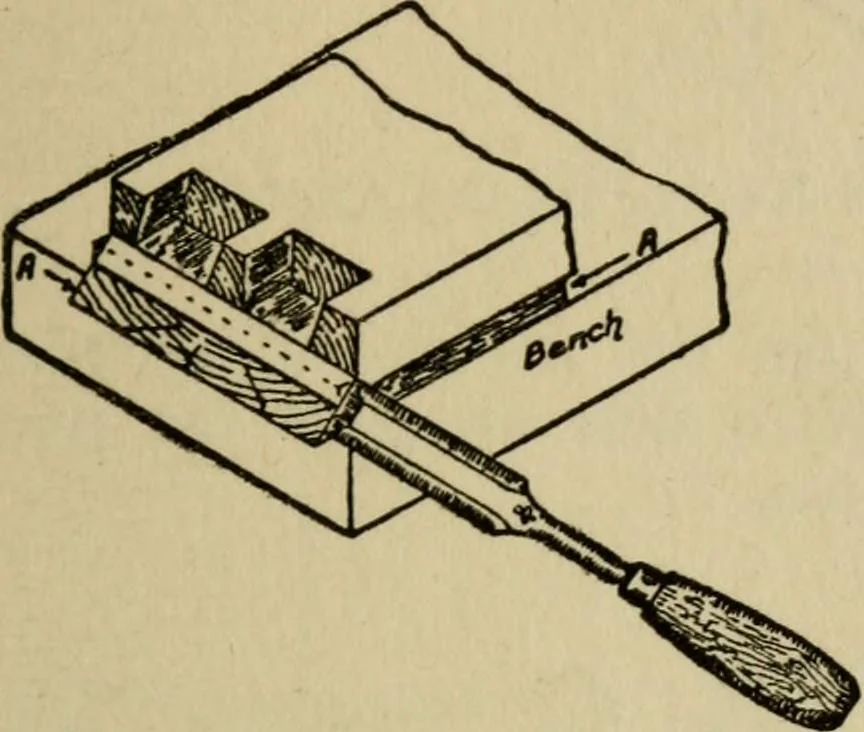

shown. Thedotted lines indicate the portion which has been worked 128 The Dovetail Joint away. The dovetails are now sawn and pared out in theusual way and the part denoted by the arrow is afterwardscut away with a chisel and finally finished to a smoothsurface with a rebate plane; the method of… … Fig. 297.—Working a Housed Fig. 298.—Dovetailand Mitred Dovetail. Keying. mitre and placed underneath the dovetailed piece to forma template. Both pieces of the timber are now securedto the bench with a handscrew or cramp ; the template Awill form a guide for the chisel and rebate plane and allowa…
Woodwork · Carpentry
