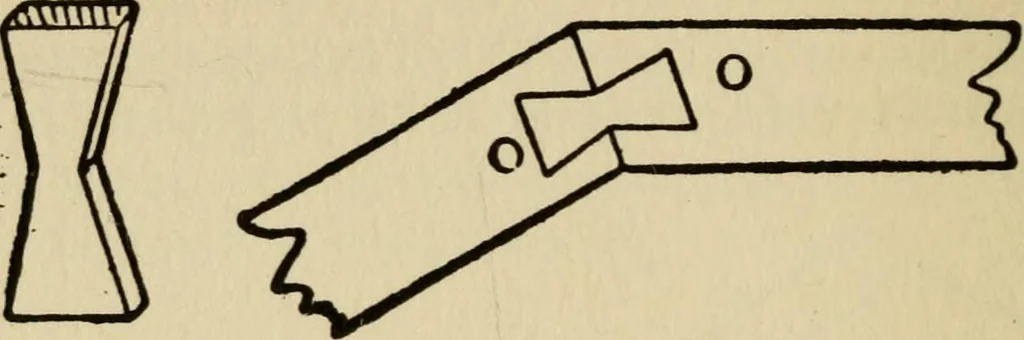

shown. Beyond callingattention to the fact that the angles at the edges of thekeys, where they are bevelled, should be at or about75 degs., nothing further need be said, as the drawing isself-explanatory. Angle dovetail keying is shown atFig. 298A. J.w. ^ 129 * Joints in Woodwork Dovetails for… … Fig. 298A.—^Dovetail Keying on the Angle. and the plan E D illustrates the method of roundingaway the corners. The radius dies away at the joint,practically hiding the joint line.
