Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 145

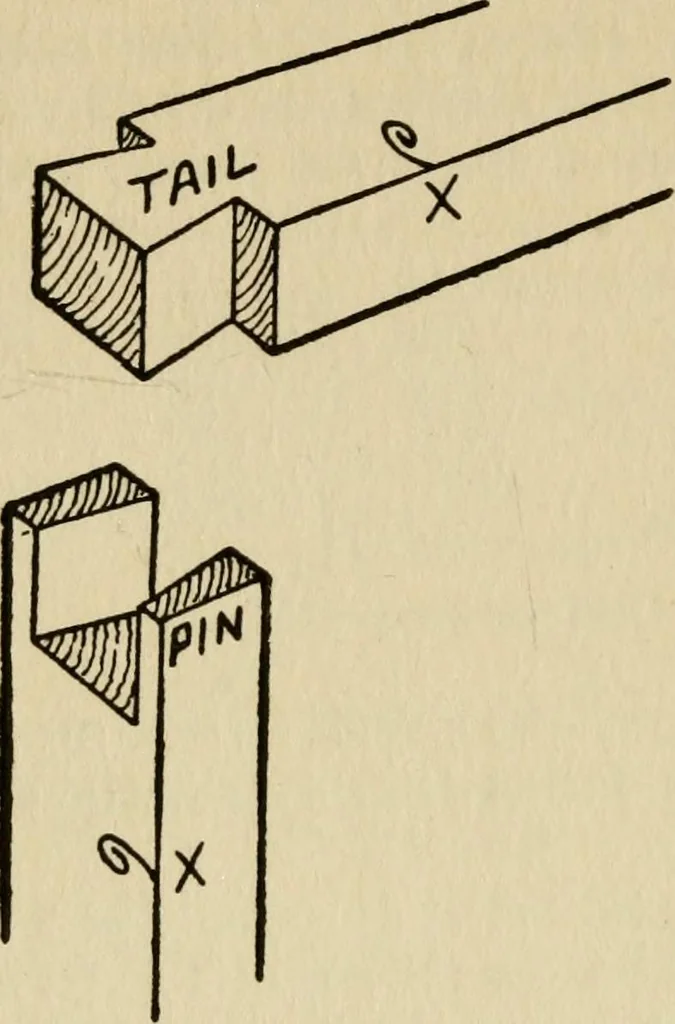

Fig. 309.—Dovetailing for Small Box. the gauge Hues on the wood as illustrated at Fig. 313, G.Proceed to mark out the dovetail pins, as at Fig. 314; inthis illustration G again shows the gauge line. The inclina-tion of the lines across the end of the wood should not betoo great, or the joint will… … ^ESSSS ^\ Fig. 310.—Corner Dovetail. Fig. 311.—Squaring.
