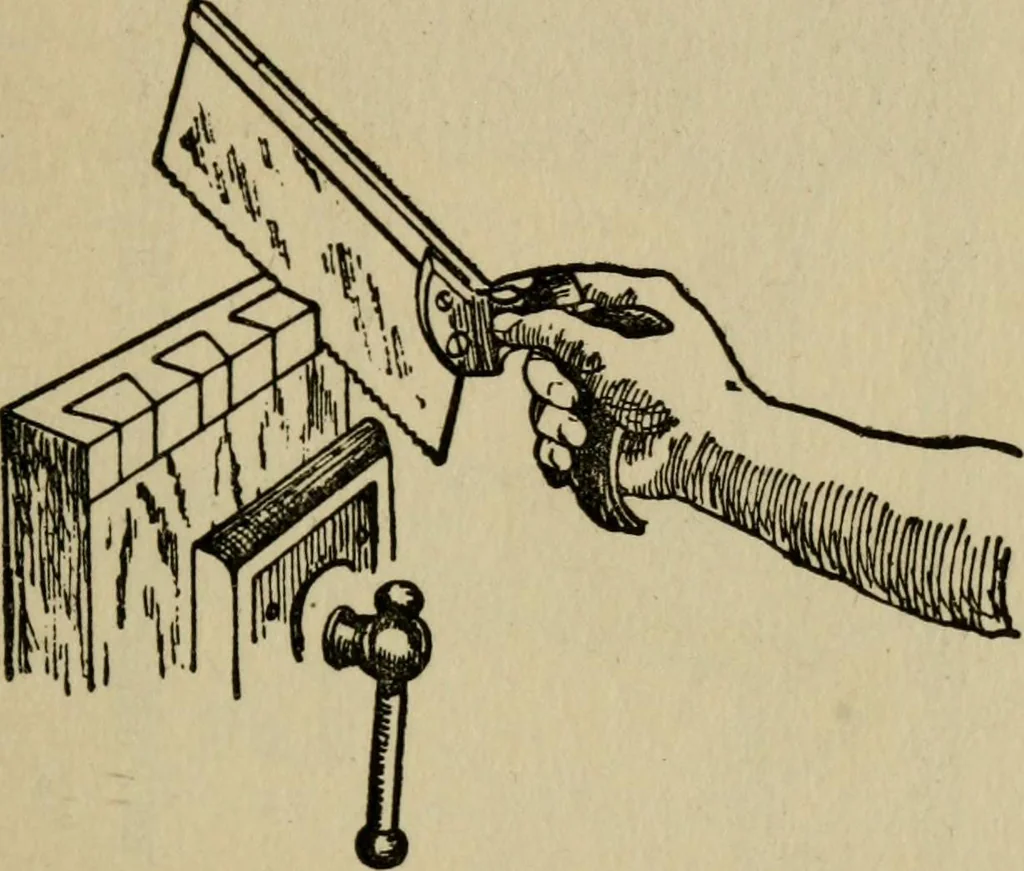

oods. To cut away the waste of a lap-dovetail, as shown atFig. 325, the vertical and obUque cuts are repeated until 142 The Dovetail Joint the final trimming up is required, and now is the time tofinish both the vertical and the horizontal cuts exactlyon the gauge hues. Some workers prefer to cut… … Fig. 327.—Sawing the Dovetail Pins of Drawers. all at one operation. If this method be adopted the pro-cedure for marking the drawer fronts and backs is shownat Fig. 326. The drawer front is placed in the vice, and the drawerside held upon it, whilst the saw blade is placed in thesaw kerf and drawn…
