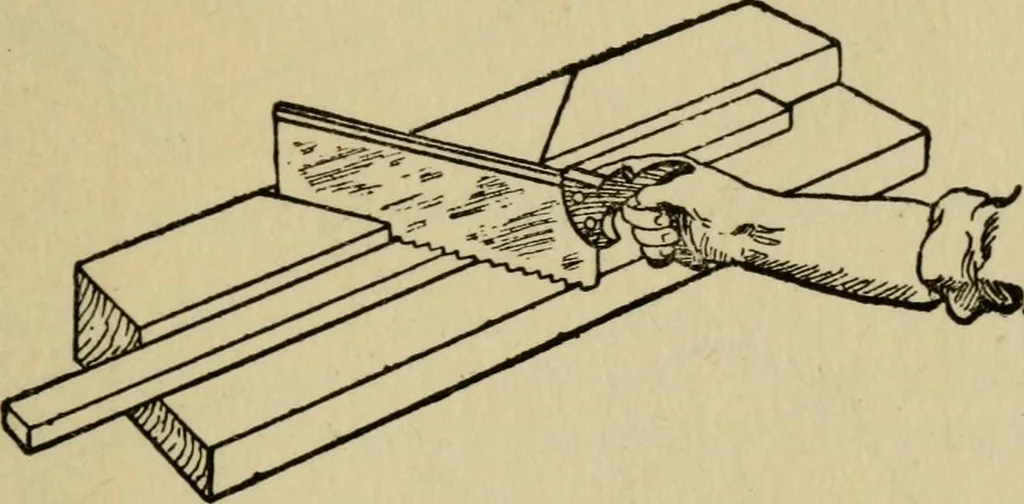

tofit the fine of bisection. Should the angle be bounded bystraight Hues, as at Fig. 396 or Fig. 397 A, then themitred joint will be a straight Une, but should the angle 178 The Mitrea Joint be bounded by a curved and a straight line, as atFig. 405 A, or by two curved lines, then the mitred… … Fig. 398.—Sawing Block for Mitreing. The mitre joint line is found by bisecting the angle, asshown in the various examples, and the following instruc-tions are given to enable the reader to foUow the enlargeddiagram (Fig. 396). Take a pair of compasses, or dividers,and with any convenient opening…
