Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 42

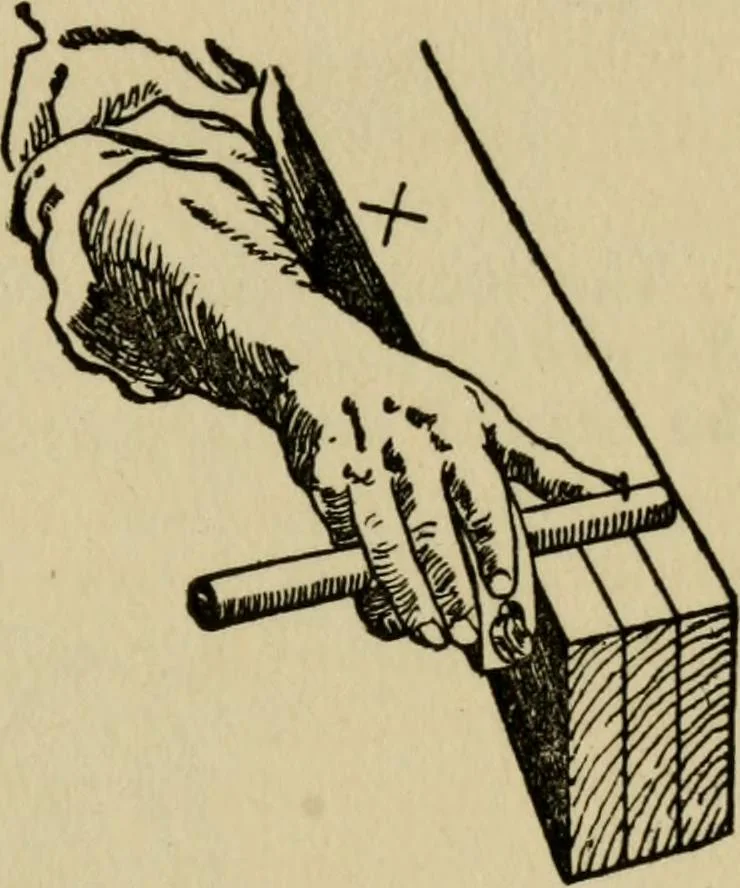

Fig. 8i.—Bridle Joint, openand closed. Fig. 82.—Gauging theTimber with Mortise Gauge. Gauging.—After squaring all the shoulder lines roundthe timber with the knife and try square, the mortisegauge should be set so as to strike the two gauge linesmarked G, Figs. 83 and 84, at one operation. If the…
Woodwork · Carpentry
