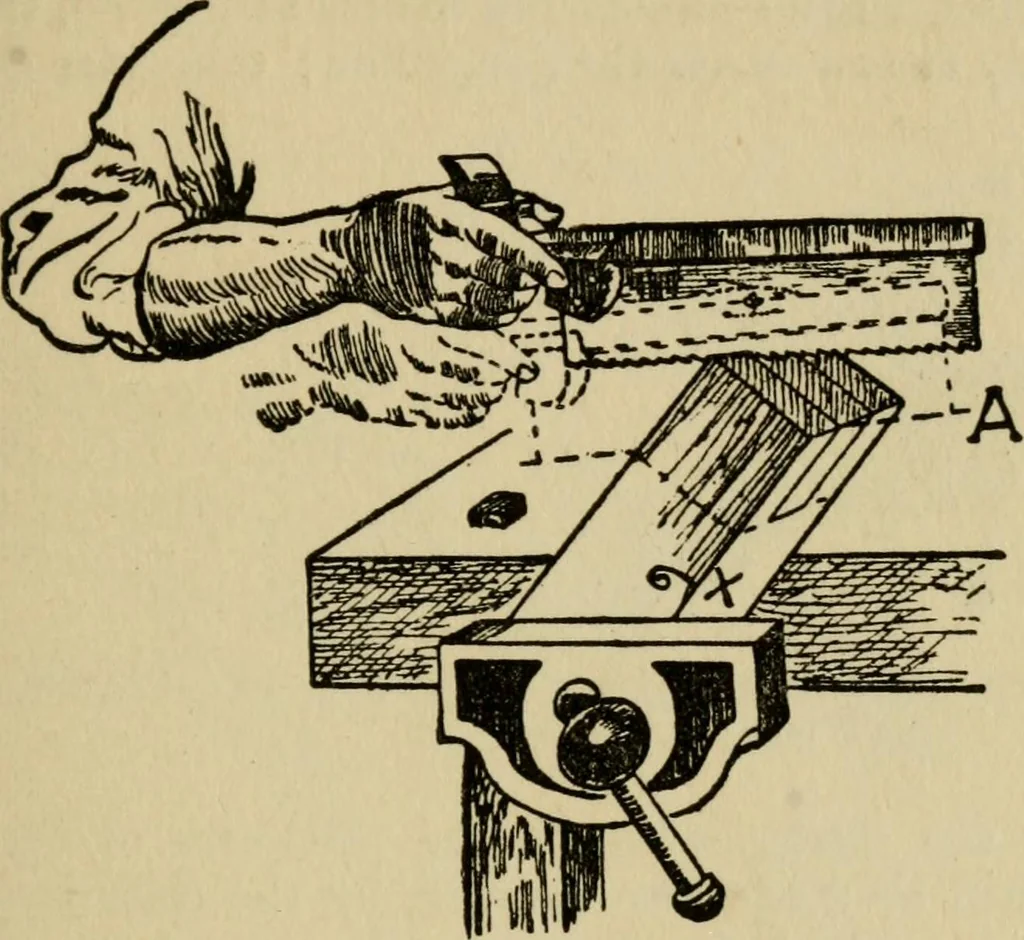

iselling. mistakes arising whilst cutting the work, especially byone who is not thoroughly familiar with the joint. The distance A B, in Fig. 83, must not be less than thedistance A B in Fig. 84. 32 The Bridle Joint Boring Away Waste.—Examine Fig. 84; the shadedportion in the centre has to be cut… … Fig. 86.—Sawing—the first cut. gauge lines G. The easiest method of boring out this holeis shown at Fig. 85. SAWING THE JOINT. Sawing.—The wood should be put in the vice as Fig. 86.Taking up a saw, with the index finger on the side of thehandle, commence sawing, and proceed until you come tothe…
