Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 73

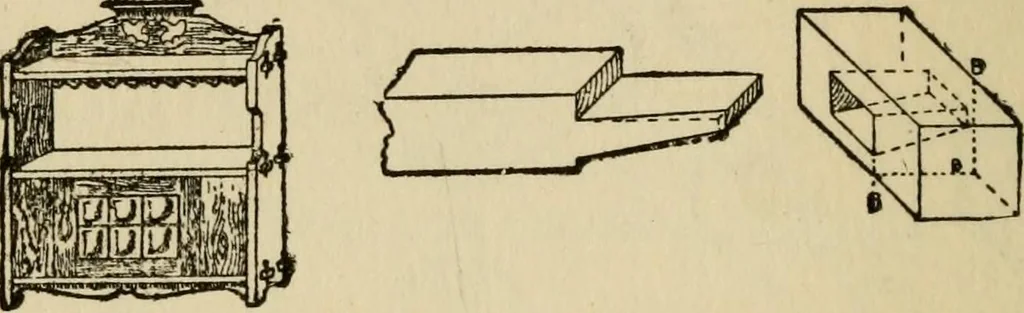

illustrationthe mortise has been cut to show the interior. Fig. 152 is a variation of the above joint. Fig. 153 shows tusk and wedged tenons as used whenmaking a portable book or medicine cupboard like Fig. 154. 61 ^ Joints in Woodwork The shelf is housed into the end, and the tenonsrun throughthe… … Fig. 154-Medicine Cupboard. Fig. 155- .Wheelwrights Joint. Wheelwrights Self-wedging Mortise and TenonJoint.—In Fig. 155 the Une B, B, B is carried around thetimber so as to clearly illustrate the amount of taper givento the mortise.
