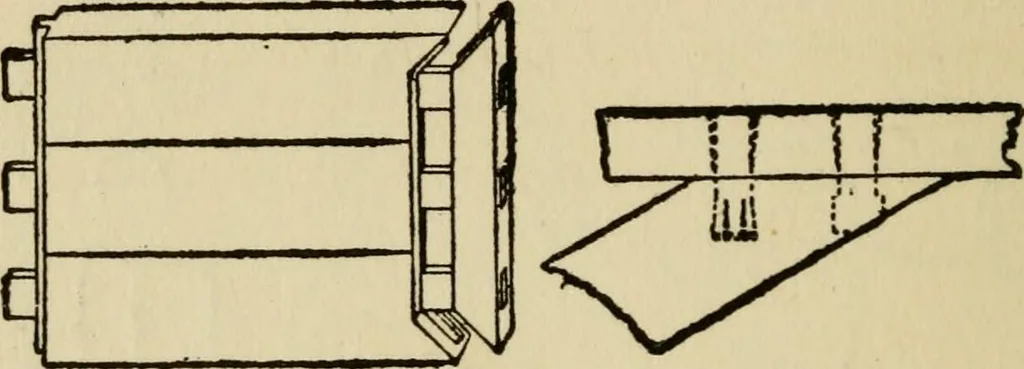

t elevation indicates the method J.w. 6^ Joints in Woodwork of wedging the joint so as to draw up the shoulders; theend view shows the tongueing of the shoulders, which isnecessary if thick timber has to be wrought. The sketchdepicts the stile when taken apart from the head of theframe.… … Fig. 169.—Clamping. Fig. 170.—Inserted Tenons, shown at the left-hand side, the corners in this examplenot being mitred. Inserted Tenons (Fig. 170).—Where two pieces of timberrun together at an acute angle it becomes necessary touse inserted tenons. Both pieces of the timber are mortisedand the…
