Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 81

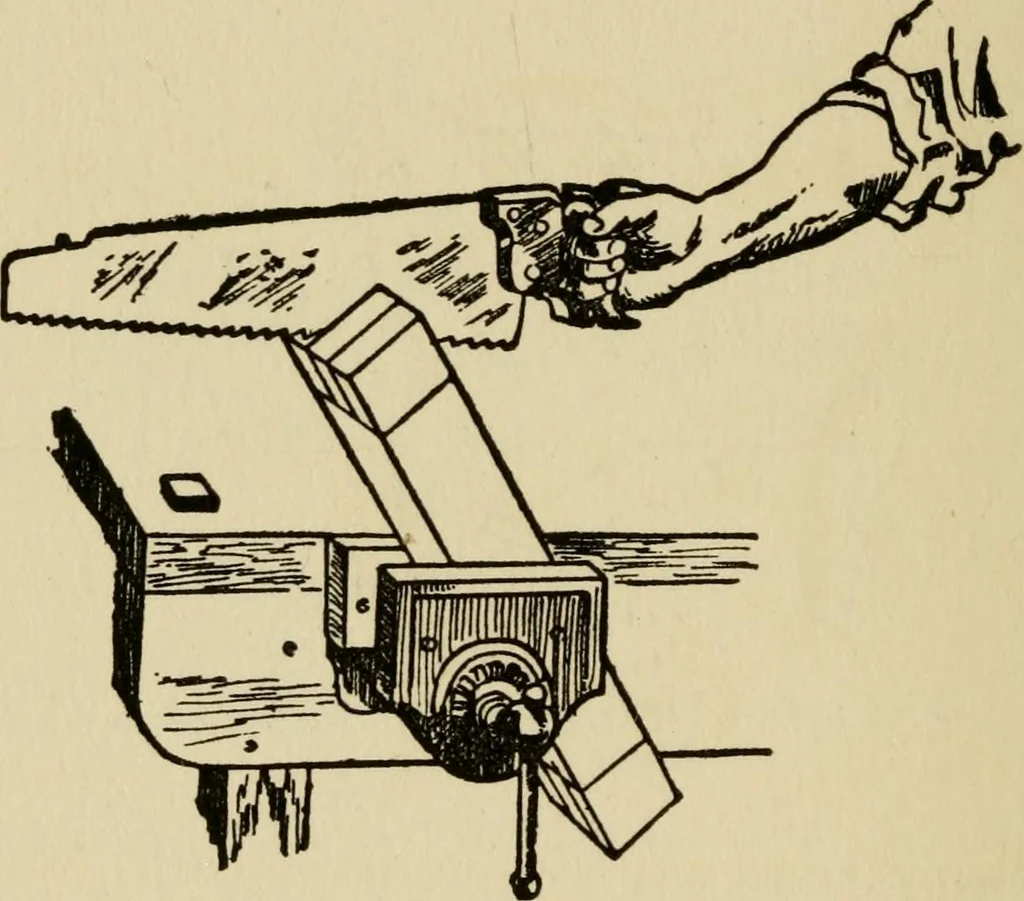

through thestile \ in. at each end) may be cut oif after the work isput together. 69 Joints in Woodwork Set out the Stiles with a marking knife or penknife anda try square, as shown at Fig. 176. In this sketch onlyone stile is shown for clearness of representation, but twoor more stiles (as at Fig.… … Fig. 177.—^How to Saw the Tenons—First Operation. at the same operation. The cut made by the markingknife should be lightly carried all round the work as themortising is cut from each edge of the stile, the cuttingof the mortising being finished in the centre. The letteringon Fig. 174 is as…
