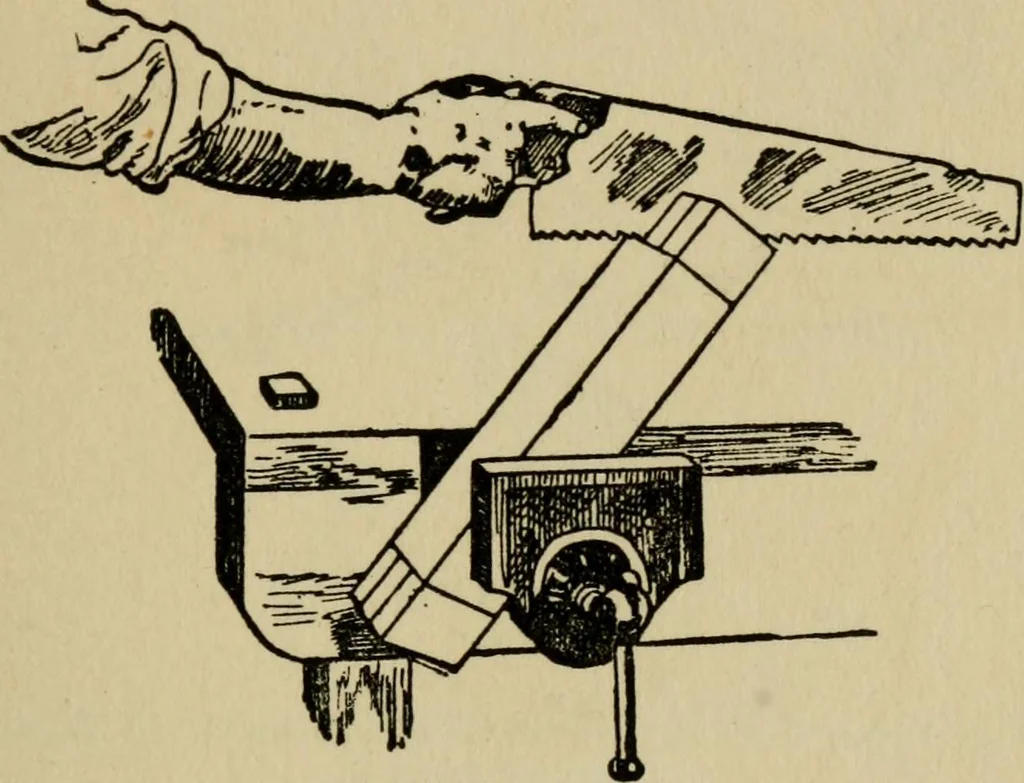

The lettering in this figure is as follows :—T, tenons ; thesmall piece of the tenon lettered J is called the haunch, 70 The Mortise and Tenon Joint and the shaded portion H is cut away to allow the haunch Jto fit the haunching of the stile. The Tenons are generally one-third the thickness of… … Fig. 178.—Second Operation in Sawing Tenons. To saw the Tenons, place the rail in the vice as atFig. 177 and, with a panel, tenon, or hand saw, accordingto the size of the work, cut down the outside of the tenonline as shown. Reverse your position and cut as shownat Fig. 178, then place the rail in…
