Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 83

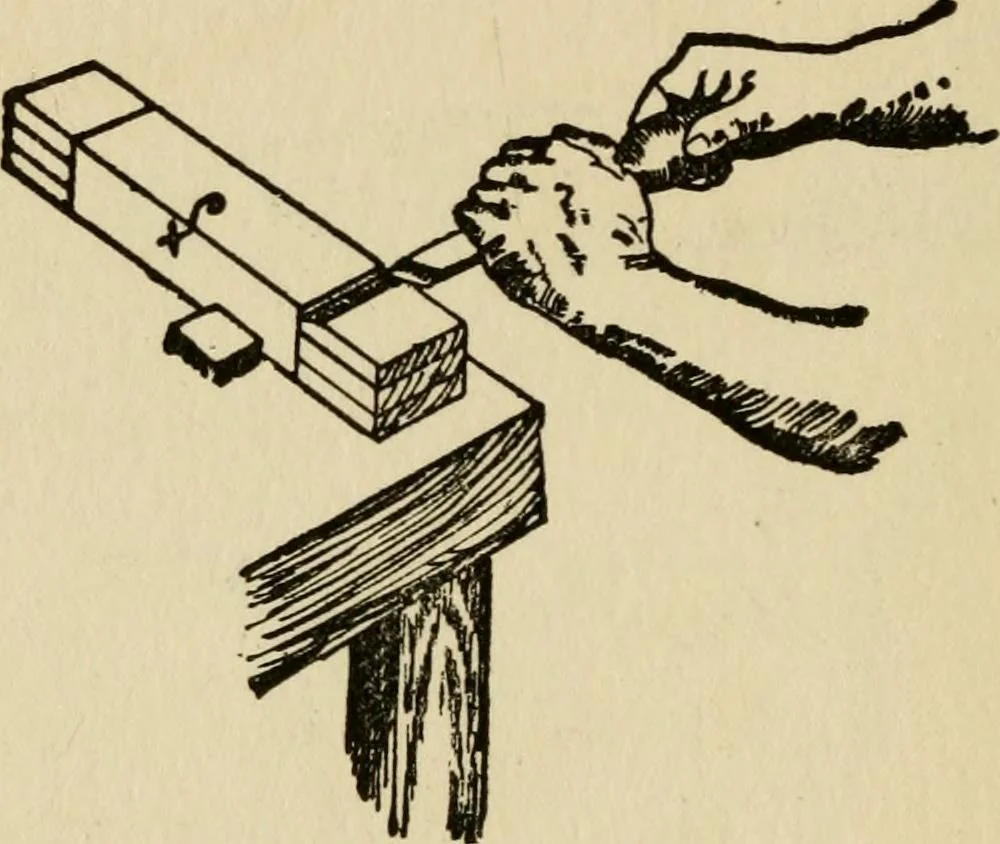

ure. Place the rail against the benchstop, or in the vice, and cut a small channel in which to 71 Joints in Woodwork run your tenon saw as shown at Fig. 179. If you havescored the Une deeply with your knife when you weremarking out the work, you will have little difficulty inremoving a small… … Fig. 179.—Cutting Channel at Shoulder of Tenonbefore Sawing. or square (Fig. 180), saw away the waste material. Removethe waste material at the sides of the tenons in a similarway, and then saw out the portion marked H, Fig. 175,lower sketch. The Mortising of the stiles may next be taken in handby…
Woodwork · Carpentry
