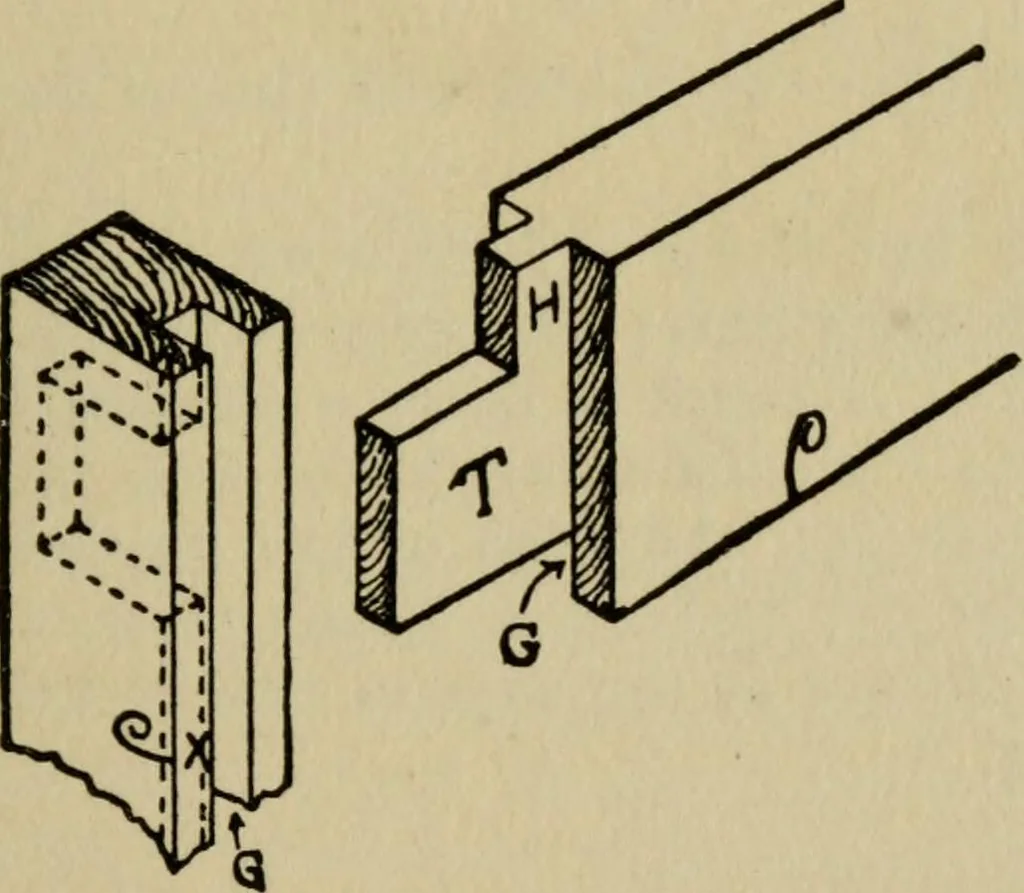

Fig. 183.—Mortise wiA Fig. 184.—^The Joint Separated.Side Removed. … Fig. 185.—Removal of Haunching, the upper rail of Fig. 173 shows the full haunch on thetop edge. In cases such as Figs. 185 and 186, where theedges of the frames are grooved to receive panels, etc.,the width of the tenon is reduced by the width of thegroove. 75 Joints in Woodwork This must be…
