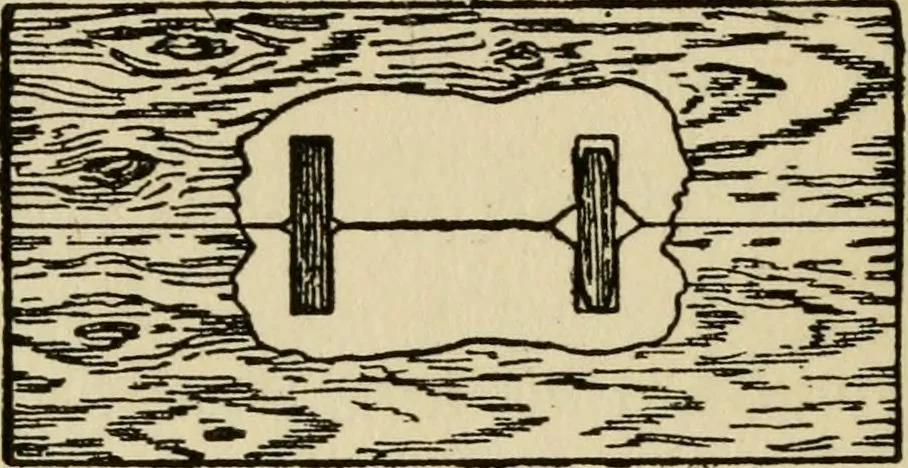

evel both edges of the timber from which the 79 Joints in Woodwork cradle is formed, thus accommodating all sizes of dowelsfrom J in. to t in. in diameter. Fig. 193 shows a completed dowel with a small grooverunning along its entire length. The object of this grooveis to allow the air and… … Fig. 196.—Good and Bad Dowels. bench and illustrates the method of grooving the dowellongitudinally by means of a saw kerf. The dowel issecured in the bench screw as shown, and the top edgeof the vice jaw acts as a guide to the tenon or dovetail sawwhilst sawing the groove, or saw kerf as it is…
