Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 95

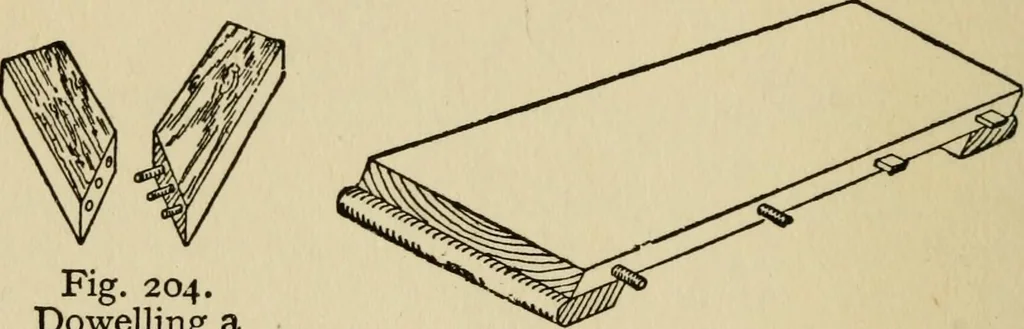

er block 83 Joints in Woodwork is sawn and spokeshaved to the desired shape as shownby the dotted line. This method is illustrated to showthat, by the use of a suitable template, dowels may beexactly set out even when there is no straight or squareface from which to use a marking gauge, and the… … Fig. 204.Dowelling aMitred Frame, Fig. 205.—Table Leaf with Dowels. explanation beyond the fact that the dowels should beat right angles to the line of joint, and consequently thedowel at the outside edge of the frame will have to bemuch shorter than the others. This gives a strong andserviceable…
