Fox, William Paul. [from old catalog] · Chicago, Ill., Fox brothers · leaf 26

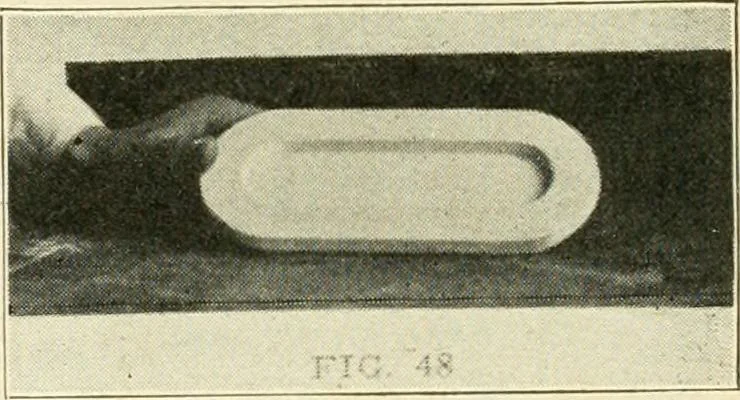

LESSON NO. 9 PIN TRAY Cut a piece of stock 7y2 long,6y2 wide, and % thick. With ripsaw cut this board into two pieces;one 7yo long by 3y2 wide, theother 7y2 long by 3 wide. Lay out with dividers and trysquare as shown in Fig. 49. Fig.50 is a photograph of the boardproperly laid out. Plane to the…
Woodwork · Mechanical drawing
