Fox, William Paul. [from old catalog] · Chicago, Ill., Fox brothers · leaf 36

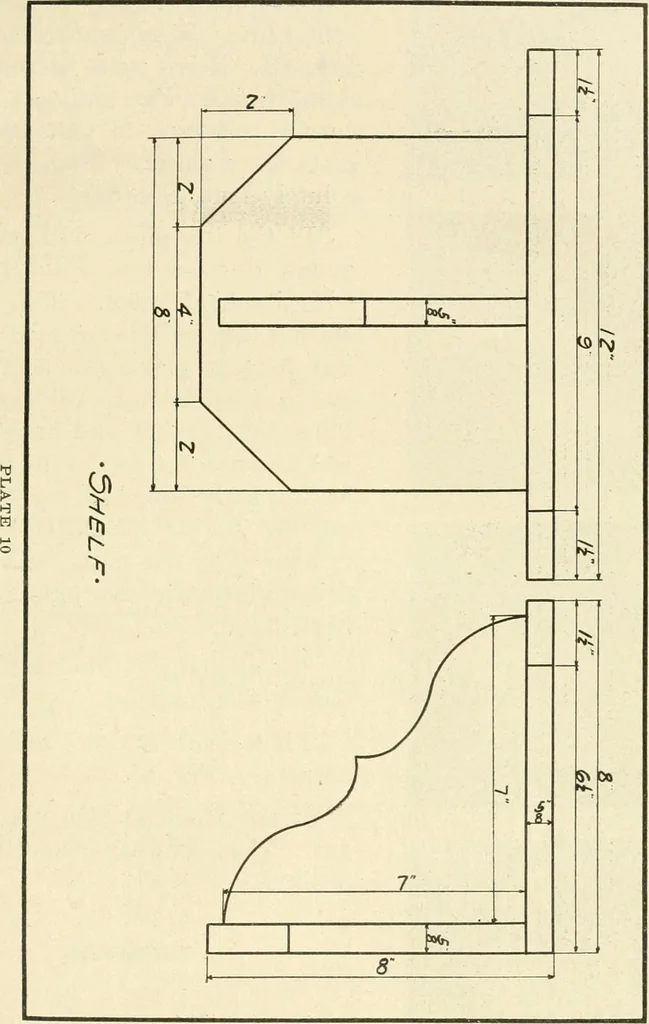

Cut it outwith a knife and use it as a patternby placing it on the board and pen-cil around the pattern. Fig. 80 isa photograph of the lay out of thebracket. With a turning saw cut tV awayfrom the line, Fig. 81. File to theline with a half round file. Thecurve when completed should becontinuous,…
Woodwork · Mechanical drawing
