Fox, William Paul. [from old catalog] · Chicago, Ill., Fox brothers · leaf 45

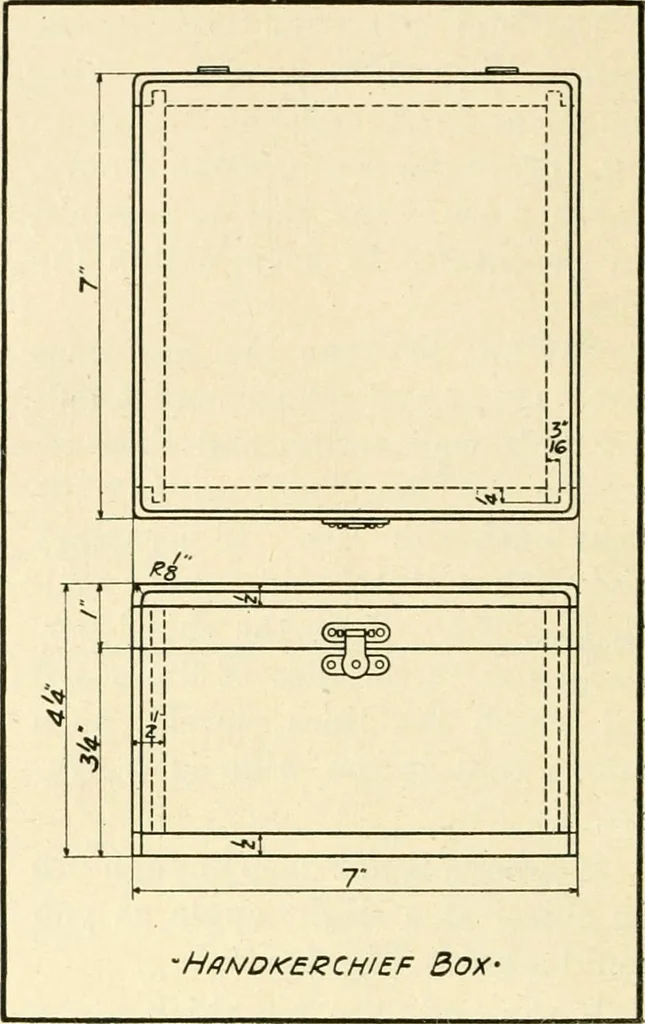

PLATE 14 LESSON NO. 17HANDKERCHIEF BOX Consult the drawing for dimen;sions of pieces, Plate 14. True both edges and ends. Layout the tongue and groove, Fig. 108,using knife, try square, and mark-ing gauge. Mark all cross lines,Fig. 109, with a knife and trysquare. Mark depth of tongue witha marking…
Woodwork · Mechanical drawing
