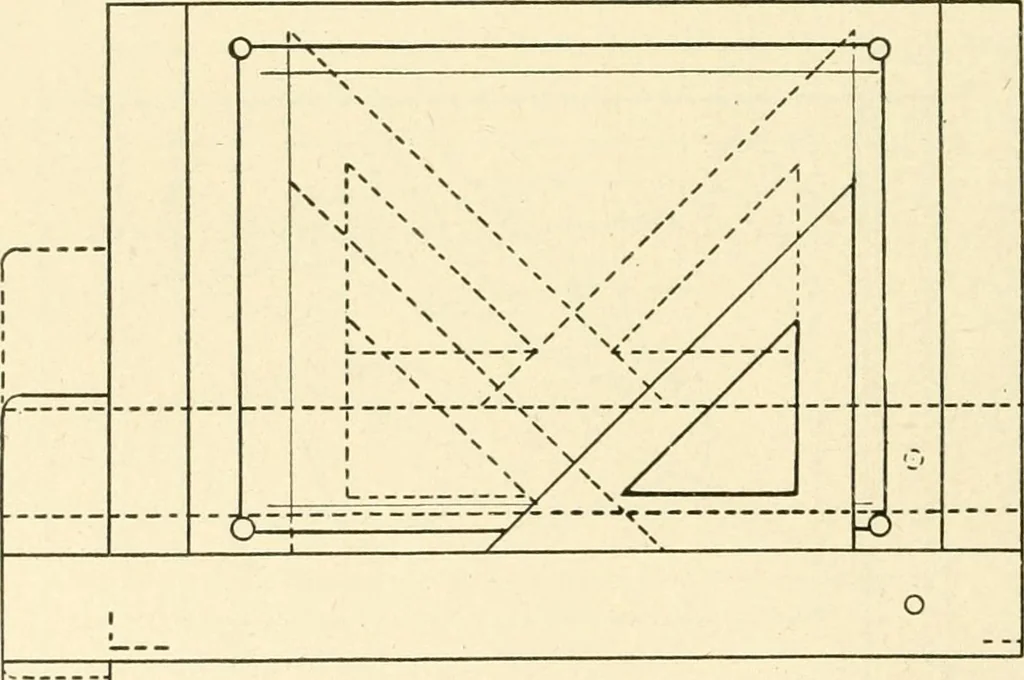

ines used os name implies « Dimension Lines, light lines with arror/ heads to denote extren>iTies On these lines figuresare placed to indicate sizeof objects Projection L me s. also light lines Lines of the object full lines to denote all visible edges - Border Lines, fulf lines ofsuffi c/enf… … FIG. 156 Illustration showing the different positions of the Tee Square and Triangle in drawing a border line. — 76 — LESSON NO. 1 Drawing Exercise to Illustrate Use of Tee Square, Triangle, Compass, and Scale 1. Draw border line 1 from left-hand edge of paper andi/2 from all other edges. 2. Bisect…
